Bearings
Cylindrical Roller
N NJ NUP Type Cylindrical Roller
Quick Code: BB-497797

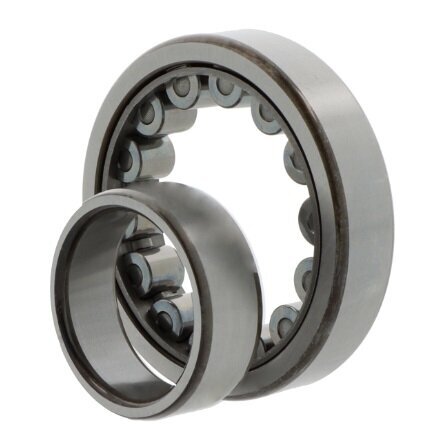

NU2216 ECJ SKF Cylindrical Roller 80mm x 140mm x 33mm
Help Articles
Also Try
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
FAG Ball Bearings
Full Complement Cylindrical Roller
Buy Now
Qty:
Product Specification
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel cage
Clearance
Standard
Current insulation
No current insulation
Design
Floating bearing, inner ring removable on both sides
Inside Dia
80mm
Outer ring
Without groove/lubrication holes
Outside Dia
140mm
Roller rows
Single row bearing
Seal
None, open bearing
Temperature range
-30 to +150 °C
Tolerance class
Dimensional accuracy P0/PN or ABEC 1, running accuracy P6 or
Width
33mm
Reference
NU2216 ECJ
Additional Reference:
10045046
Quick Order Code
BB-497797
Product Description
SKF single row cylindrical roller bearings can accommodate heavy radial loads and high speeds. The ring with the integral flanges together with the cylindrical roller and cage assembly can be separated from the other ring. This results in easy mounting and dismounting, particularly where the load conditions are such that interference fits are required for both rings.The outer ring of the NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accomadated in both directions.
