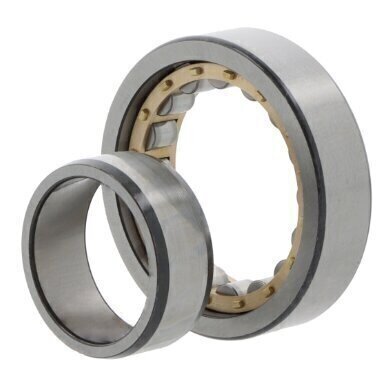

NU215 ECMC3 SKF Cylindrical Roller 75mm x 130mm x 25mm
Help Articles
Also Try
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
FAG Ball Bearings
Full Complement Cylindrical Roller
Triple Seal 4 Bolt Flanged Bearing
Buy Now
Qty:
Product Specification
Bore
Cylindrical bore
Brand
SKF
Cage
Brass cage
Clearance
C3
Current insulation
No current insulation
Design
Floating bearing, inner ring removable on both sides
Inside Dia
75mm
Outer ring
Without groove/lubrication holes
Outside Dia
130mm
Roller rows
Single row bearing
Seal
None, open bearing
Temperature range
-30 to +150 °C
Tolerance class
Dimensional accuracy P0/PN or ABEC 1, running accuracy P6 or
Width
25mm
Reference
NU215 ECMC3
Additional Reference:
10078904
Quick Order Code
BB-504936
Product Description
SKF single row cylindrical roller bearings can accommodate heavy radial loads and high speeds. The ring with the integral flanges together with the cylindrical roller and cage assembly can be separated from the other ring. This results in easy mounting and dismounting, particularly where the load conditions are such that interference fits are required for both rings.The outer ring of the NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accomadated in both directions. These bearings have a C3 clearance to allow expansion within the bearing at high speeds/temperatures.
