Bearings
Cylindrical Roller Bearings
N NJ NUP Type Cylindrical Roller Bearings
Quick Code: BB-535047

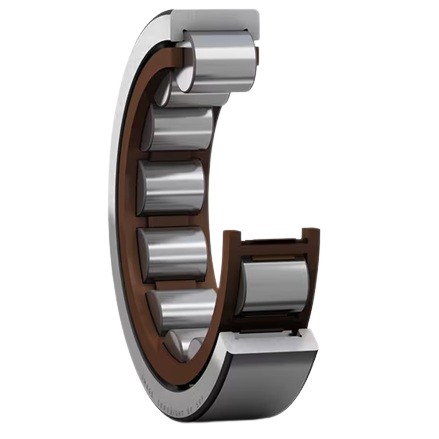

RNU2207ETVP3 NKE Cylindrical Roller Bearing 44mm x 72mm x 23mm RNU2207-E-TVP3
Help Articles
Also Try
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
FAG Ball Bearings
Full Complement Cylindrical Roller Bearings
Buy Now
Qty:
Product Specification
Bore
Cylindrical bore
Brand
NKE
Clearance
Standard
Current insulation
No current insulation
Design
Bearing without inner ring
Inside Dia
44mm
Outside Dia
72mm
Roller rows
Single row bearing
Seal
None, open bearing
Temperature range
-30 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
23mm
Reference
RNU2207-E-TVP3
Additional Reference:
10238563
Quick Order Code
BB-535047
Product Description
Single row cylindrical roller bearings of the NU design without an inner ring consist of an outer ring with a roller and cage assembly. They are typically used in applications where hardened and ground raceways are provided on the shaft. Without the inner ring, a larger shaft diameter can be used to provide a stronger, stiffer shaft. The bearings can accommodate axial displacement in both directions, limited only by the width of the raceway on the shaft.
Key Features
