N NJ NUP Type Cylindrical Roller Bearings
Quick Code: BB-515847

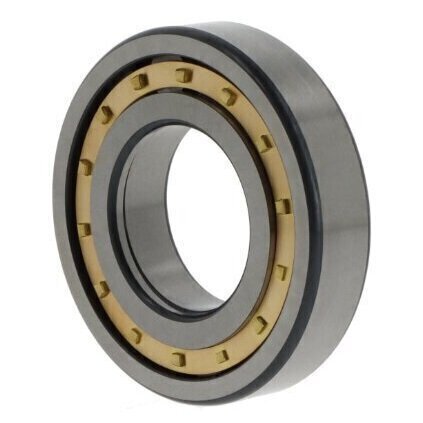

NUP309 ECNJC3VM004 SKF Cylindrical Roller 45mm x 100mm x 25mm
Help Articles
Also Try
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
FAG Ball Bearings
Full Complement Cylindrical Roller Bearings
Buy Now
Qty:
Product Specification
Bore
Cylindrical bore
Brand
SKF
Cage
Brass cage
Clearance
C3
Current insulation
No current insulation
Design
Fixed bearing
Inside Dia
45mm
Outer ring
Without groove/lubrication holes
Outside Dia
100mm
Roller rows
Single row bearing
Seal
None, open bearing
Temperature range
-30 to +150 °C
Tolerance class
Tolerance class P6 / ABEC 3
Width
25mm
Reference
NUP309 ECNJC3VM004
Additional Reference:
10123527
Quick Order Code
BB-515847
Product Description
SKF single row cylindrical roller bearings can accommodate heavy radial loads and high speeds. The ring with the integral flanges together with the cylindrical roller and cage assembly can be separated from the other ring. This results in easy mounting and dismounting, particularly where the load conditions are such that interference fits are required for both rings.The outer ring of the NJ design bearing has two integral flanges and the inner ring has one integral flange. These bearings can locate the shaft axially in one direction.
