Bearings
Cylindrical Roller Bearings
N NJ NUP Type Cylindrical Roller Bearings
Quick Code: BB-699627

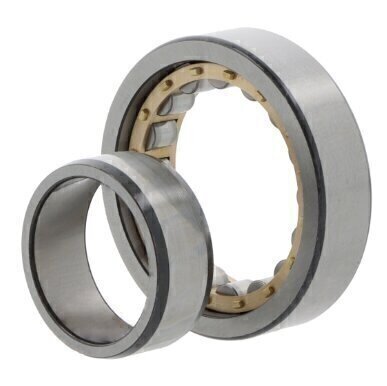

NU2310 ECML/C3 SKF Cylindrical Roller 50mm x 110mm x 40mm
Help Articles
Also Try
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
FAG Ball Bearings
Full Complement Cylindrical Roller Bearings
Buy Now
Product Specification
Brand
SKF
Clearance
C3
Inside Dia
50mm
Outside Dia
110mm
Width
40mm
Reference
NU2310ECML/C3
Quick Order Code
BB-699627
Product Description
The NU2310 ECML/C3 SKF Cylindrical Roller Bearing is a premium quality bearing designed for demanding industrial applications requiring high radial load capacity. Manufactured by SKF, a world-leading bearing manufacturer, this cylindrical roller bearing delivers exceptional performance and reliability.
The NU type design features a single row of cylindrical rollers with two fixed ribs on the outer ring and no ribs on the inner ring, allowing for axial displacement between the shaft and housing to accommodate thermal expansion or mounting tolerances.
Key Specifications:
- Reference: NU2310ECML/C3
- Brand: SKF
- Inside Diameter (Bore): 50mm
- Outside Diameter: 110mm
- Width: 40mm
- Clearance: C3 (greater than normal internal clearance)
Features & Benefits:
- ECML designation indicates optimised internal geometry for enhanced performance
- C3 clearance rating - ideal for applications with temperature variations or interference fits
- High radial load carrying capacity
- Suitable for high-speed operation
- Low friction design for improved efficiency
Typical Applications:
- Electric motors and generators
- Gearboxes and transmissions
- Pumps and compressors
- Industrial machinery
- Heavy-duty equipment
Cylindrical roller bearings like the NU2310 are ideal for heavy industry applications where high radial loads are present and reliable, long-lasting performance is essential.
