Bearings
Cylindrical Roller
N NJ NUP Type Cylindrical Roller Bearings
Quick Code: BB-505571

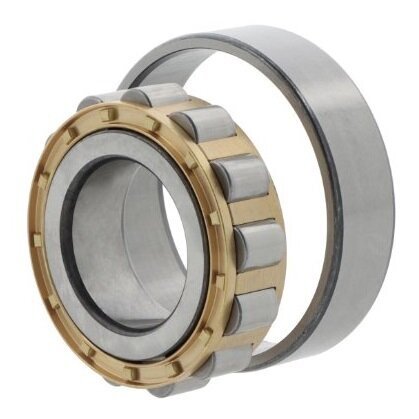

N320 ECM SKF Cylindrical Roller 100mm x 215mm x 47mm
Help Articles
Also Try
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
FAG Ball Bearings
Full Complement Cylindrical Roller Bearings
Buy Now
Qty:
Product Specification
Bore
Cylindrical bore
Brand
SKF
Cage
Brass cage
Clearance
Standard
Current insulation
No current insulation
Design
Floating bearing, outer ring removable on both sides
Inside Dia
100mm
Outer ring
Without groove/lubrication holes
Outside Dia
215mm
Roller rows
Single row bearing
Seal
None, open bearing
Temperature range
-30 to +150 °C
Tolerance class
Dimensional accuracy P0/PN or ABEC 1, running accuracy P6 or
Width
47mm
Reference
N320 ECM
Additional Reference:
10082456
Quick Order Code
BB-505571
Product Description
SKF single row cylindrical roller bearings can accommodate heavy radial loads and high speeds. The ring with the integral flanges together with the cylindrical roller and cage assembly can be separated from the other ring. This results in easy mounting and dismounting, particularly where the load conditions are such that interference fits are required for both rings.The inner ring of an N design bearing has two integral flanges while the outer ring has no flanges. Axial displacement of the shaft with respect to the housing can be accomodated in both directions.
Key Features
