Quick Code: BB-661188

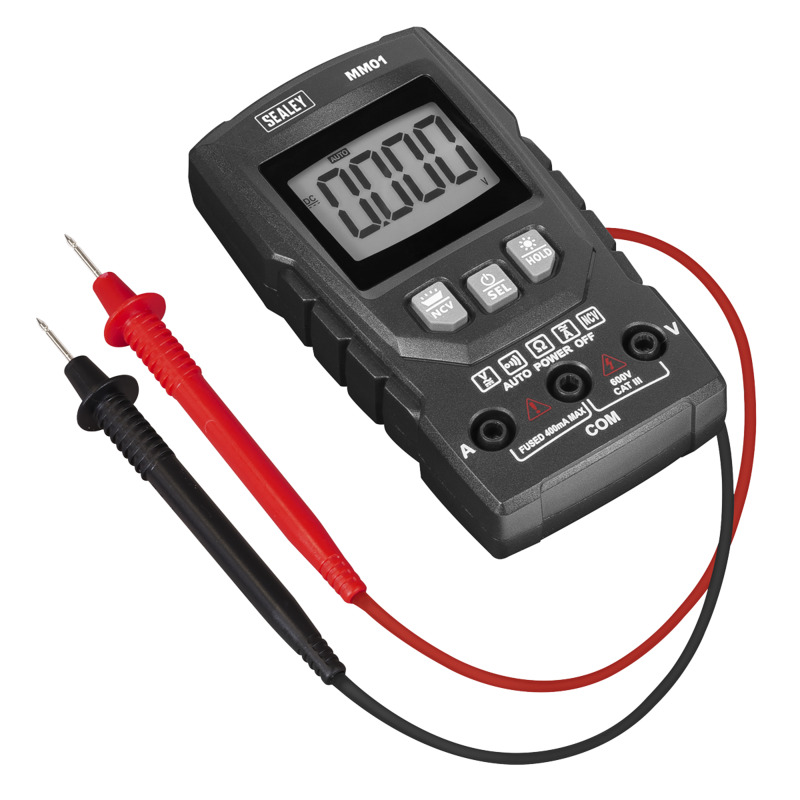

Sealey MM01 Auto-Ranging Digital Multimeter 6-Function
Also Try
Probes & Circuit Testers
Battery & Alternator Diagnostics
Wiring Tools
Battery & Alternator Tools
Miscellaneous
Buy Now
Product Specification
AC Current (Accuracy)
Range: 400mA, Resolution: 0.1mA, Accuracy: ±(1.5% + 3 digits)
AC Voltage (Accuracy)
Range: 4/40/400/600V, Resolution: 0.001/0.01/0.01/1V, Accuracy ±(1.2% +5 digits/1.5% + 10 digits)
Backlit/Torch
YES
Battery
2 x 1.5V AAA (supplied)
Brand
Sealey
Capacitance (Accuracy)
NO
Conformity
EN 61010-2
Continuity
YES
DC Current (Accuracy)
Range: 400mA, Resolution: 0.1mA, Accuracy: ± (1.2% reading + 3 digits)
DC Voltage (Accuracy)
Range: 4/40/400/600V, Resolution: 0.001/0.01/0.01/1V, Accuracy: ± (1% + 3 digits/ 1% + 3 digits)
Digits x Height
4 x 16mm
Diode Test
NO
Duty Cycle
NO
Hi-Impact Rubber Case
YES
Information

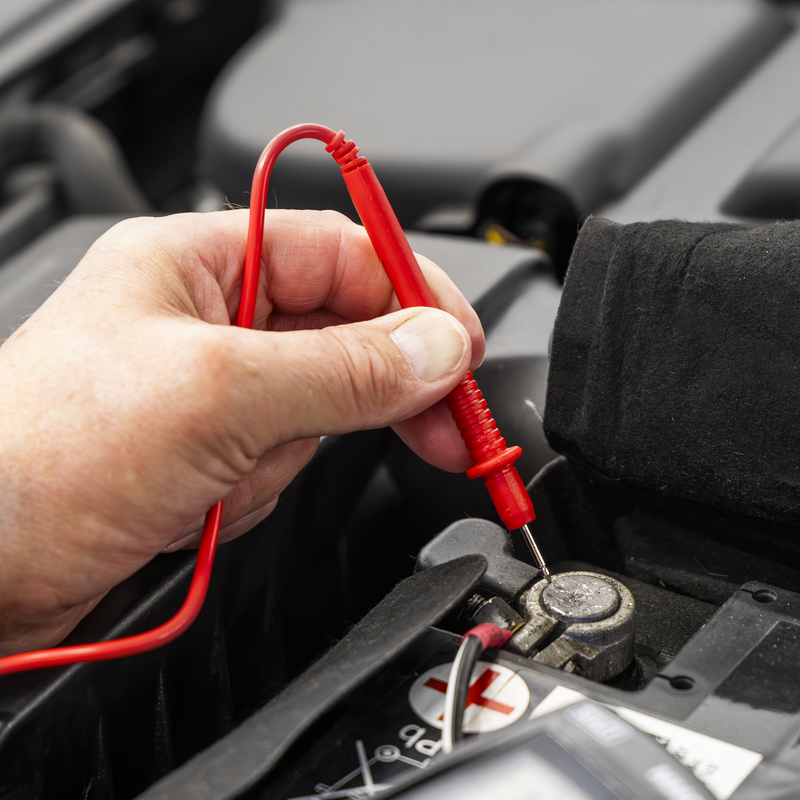

Data-Hold, Auto-Power-Off & Live Test
Low Battery Indicator
YES
Model No
MM01
Nett Weight
0.156kg
Resistance (Accuracy)
4KΩ /40KΩ /400KΩ (Ohm), Resolution: 0.001/0.01/0.1 (Ohm), Accuracy: ±(1.2% + 5 digits)
Resistance (Accuracy)
Range: 4MΩ /40MΩ (Ohm), Resolution: 0.001M/0.01M (Ohm), Accuracy: ±(2% + 5 digits)
Size ( L x W x D)
142 x 92 x 38mm
Temperature (Accuracy)
NO
Transistor Test
NO
Reference
MM01
Quick Order Code
BB-661188
Product Description

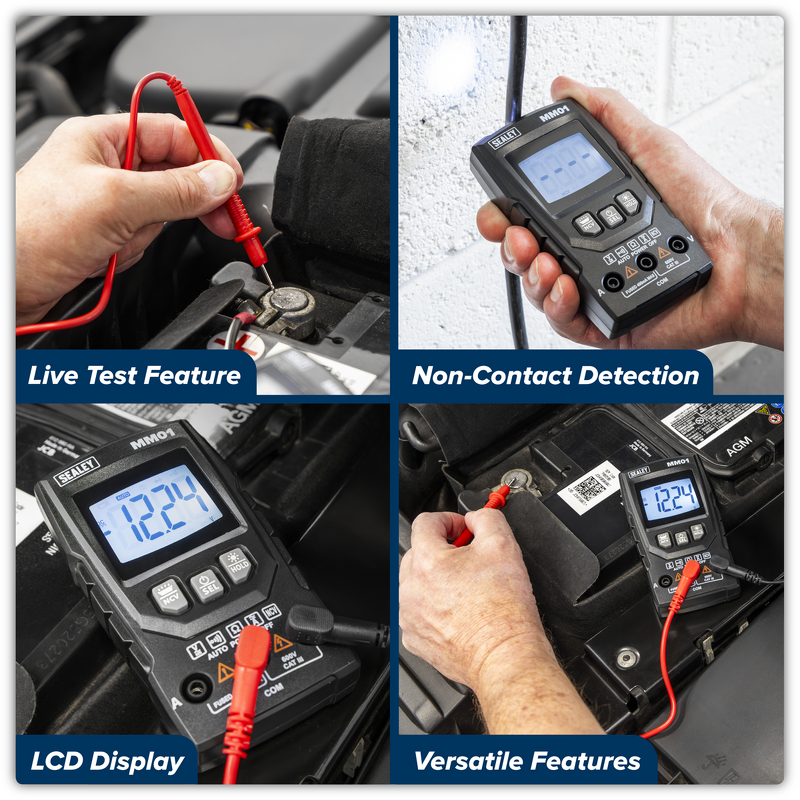

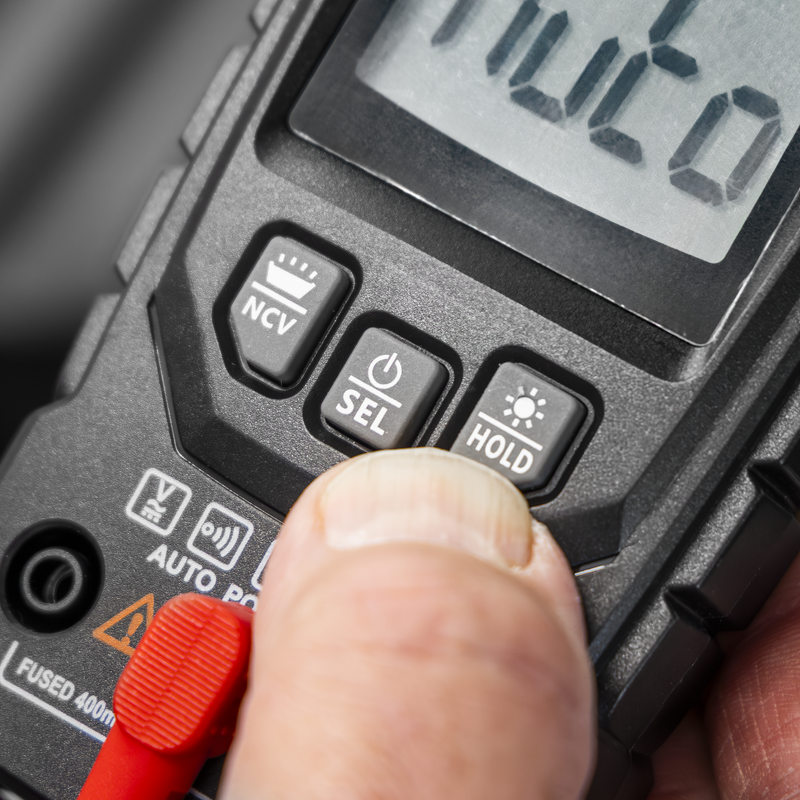

INTELLIGENT AUTO-RANGING - The multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity.VERSATILE FEATURES - Includes, data-hold, auto-power-off function and low battery indicator.
NON-CONTACT VOLTAGE DETECTION (NCVD) Enables one-handed use.
4000 COUNT High precision measurements.
LCD DISPLAY Clear and easy-to-read.
LED WORK LIGHT Enhances visibility in low light conditions.
CONFIRMS TO EN 61010-2 CATIII 600V SAFETY REQUIRMENTS - For electrical equipment for measurement, control and laboratory use.
