Bearings Self Aligning Ball Metric
Quick Code: BB-3584

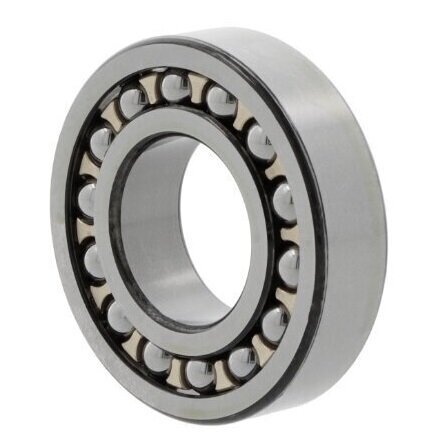

2309 EMC3 SKF Self Aligning Bearing (Brass Cage)

Name: 2309 EMC3 SKF Self Aligning Bearing (Brass Cage)
Brand: SKF
SKU: 2309EMC3
Price: 398.75 GBP
Availability: InStock

Help Articles

Measuring Bearings
How to Measure and Choose the Correct Bearing Type

Self Aligning Ball Bearings
Technical Information on Self Aligning Ball Bearings

Also Try

Metric Oil Seals

BU Type Bearings

SKF Spherical Roller

Dunlop & Budget Ball Bearings

Imperial

Buy Now

Qty:

Product Specification

Bore Type

Parallel

Brand

SKF

Cage

Brass

Clearance

Standard

Inside Dia

45mm

Outside Dia

100mm

Reference Speed

13000rpm

Width

36mm

Reference

2309EMC3

Quick Order Code

BB-3584

Product Description

2309 EMC3 SKF Self Aligning Bearing Self aligning bearings have two rows of balls and a common concave sphered raceway in the outer ring. This means that the bearings are self-aligning and are therefore insensitive to angular misalignments. It is well suited to applications where considerable shaft deflections or misalignment are anticipated. In addition, the self-aligning ball bearing has the lowest friction of all rolling bearings which enables it to run cooler even at high speeds.

Optimised internal design

Machined brass cage, ball centred

Parallel bore type

C3 clearance - Radial internal clearance greater than normal
