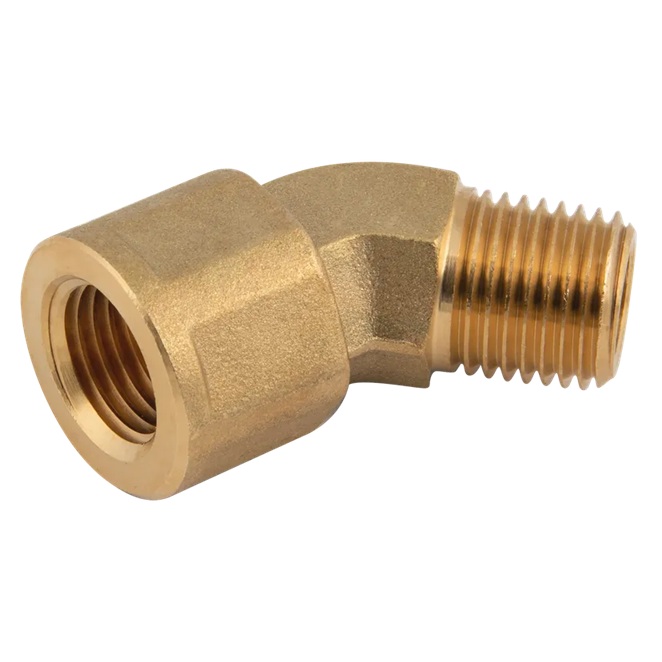

Male x Female 45 Degree Elbow BSPT x BSPP
Quick Code: BB-86478
1/8inch BSPT x 1/8inch BSPP 45° Male/Female Equal Elbow
Also Try
Female Block Equal Tee
Male Equal Swivel Union Tapered
Female with Swivel Nut - Flat Faced Seat with Washer
Hexagon Nipple BSPP x BSPT - 60 Degree Cone Seat
Male x Female 45° Equal Elbow
Buy Now
Qty:
Product Specification
Female Thread Size
1/8inch BSPP
Male Thread Size
1/8inch BSPT
Reference
UP11-18
Quick Order Code
BB-86478
Product Description
High-quality brass elbow fitting forged and precision machined from Brass JIS3771, designed for superior performance in pneumatic and hydraulic applications. This 45° equal elbow connects 1/8inch BSPT male thread to 1/8inch BSPP female thread.
Technical Specifications:
- Working Temperature Range: -54°C to +121°C
- Maximum Working Pressure: 1000 psi (70 bar)
- Material: Brass JIS3771
- Part Reference: UP11-18
Applications:
- Industrial pneumatic systems
- Hydraulic connections
- Compressed air lines
- Process control systems
- Fluid transfer applications
The 45-degree angle design provides an ideal solution for installations where space is limited or where a gradual direction change is required, reducing flow resistance compared to 90-degree fittings. Precision-engineered for reliable performance and long service life in industrial applications.
