Quick Code: BB-531676

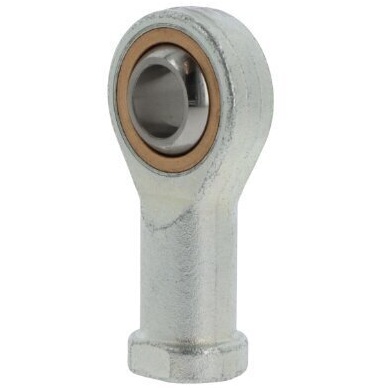

CMX14-M14 Stainless Housing, Bronze Outer Race Tescubal Male Rod End
Also Try
Male Rod Ends (Gr-Nylon Race)
Fluro Rod Ends - Series G - Male
Male Rod Ends (PTFE Liner)
Male Rod Ends (Stainless Steel, PTFE Liner)
Fluro Rod Ends - Series E - Male
Buy Now
Qty:
Product Specification
Bore Size
14mm
Lubrication hole
Without lubrication groove
Maintenance
Maintenance-free version
Thread
M14
Thread Direction
Left Hand
Thread type
Male thread
Version
Steel/bronze (stainless)
Reference
CMX14M14
Additional Reference:
10194767
Brand
Tescubal
Quick Order Code
BB-531676
Product Description
Self-lubricating rod ends stainless steel, male thread, series K, DIN ISO 12240-4, maintenance freeHOUSING: stainless steel X5CrNi1810 (1.4301 – AISI 304)
OUTER RING: sintered bronze impregnated with high efficiency lubricating fluid
INNER RING: tempered, ground and polished steel for bearings X20Cr13 (1.4021 – AISI 420)
MAINTENANCE: maintenance free
TEMPERATURE RANGE: -30° C to +120° C
