Quick Code: BB-661196

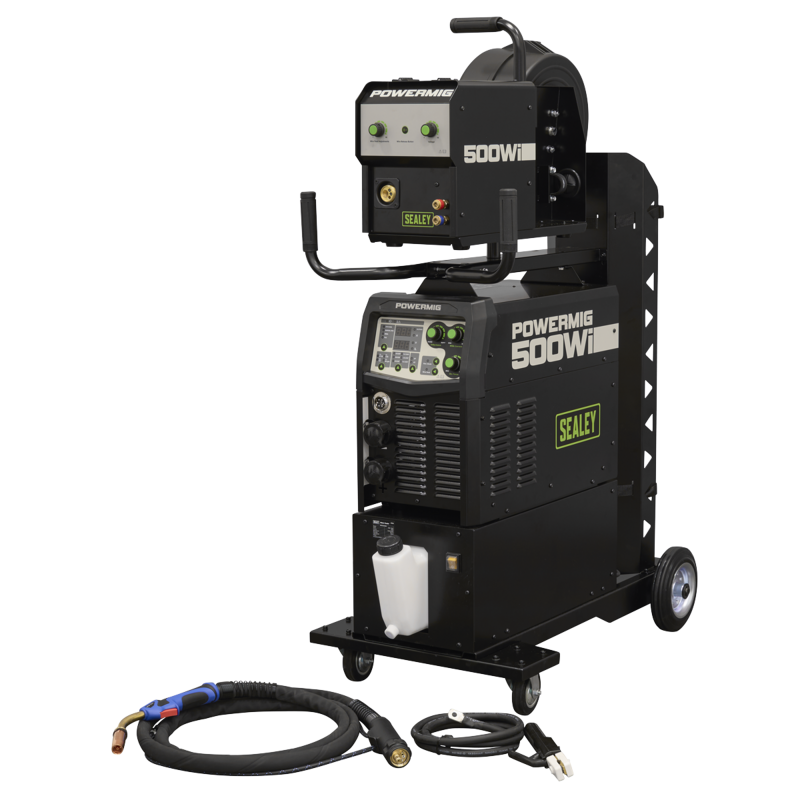

Sealey POWERMIG500Wi 500A Professional Gas/Gasless MIG/TIG/MMA Inverter Welder with Portable Wire Feeder Water Cooler 400V 3ph
Also Try
Arc/TIG
Accessories
Consumables
Plasma
Buy Now
Product Specification
Absorbed Power
19.04kW
Brand
Sealey
Coolant
Distilled Water
Duty Cycle MIG
60% @ 500A
100% @ 388A
Duty Cycle MMA
60% @ 500A
100% @ 388A
Duty Cycle TIG
60% @ 500A
100% @ 388A
Efficeincy
0.8
Electrode Capacity
1.6-5mm
Feed Rate
8L/min
Gas Type
CO2, Argon, CO2/Argon Mix
Input Current
39.5A (MMA), 40A (MIG)
IP Rating
IP21S
Max Pressure
3kg/cm²
Mig Torch (inc)
3m Euro Non-Live Torch
Model No
POWERMIG500Wi
Nett Weight
97.1kg
No Load Voltage
85V (MMA), 85V (MIG)
Note*
In freezing conditions add antifreeze to the coolant.
Output Voltage
50A/22V to 500A/40V (MMA), 30A/15.5V to 500A/39V (MIG)
Plug Type
Bare Wire
Power
370W
Power Supply Cable Length
2m
Specifications for Water Cooler
Supply
230V - 50Hz
Supply
400V 3ph
Tank Capacity
6L
Weight
15kg
Weight
55.7kg
Welding Current
30-500A
Wire Capacity
5-15kg
Reference
POWERMIG500Wi
Quick Order Code
BB-661196
Product Description
MULTI PROCESS INVERTER WELDER - Multi process IGBT inverter Gas/Gasless MIG/TIG/MMA welder suitable for professional fabricators and workshops, as well as mechanics and technicians. PORTABLE WIRE FEEDER Equipped with a portable wire feeder enabling access into high or tight spaces that would otherwise be difficult to reach.
WATER COOLED In-built water cooler allows the torch to remain cooler for longer enhancing efficiency and productivity.
500A MAX OUTPUT - Maximum 500A output, ideal for welding a large variety of metals including steel, stainless steel up to 20mm.
2T/4T TRIGGER FUNCTION - 2T/4T Torch trigger function allowing greater precision during longer welds.

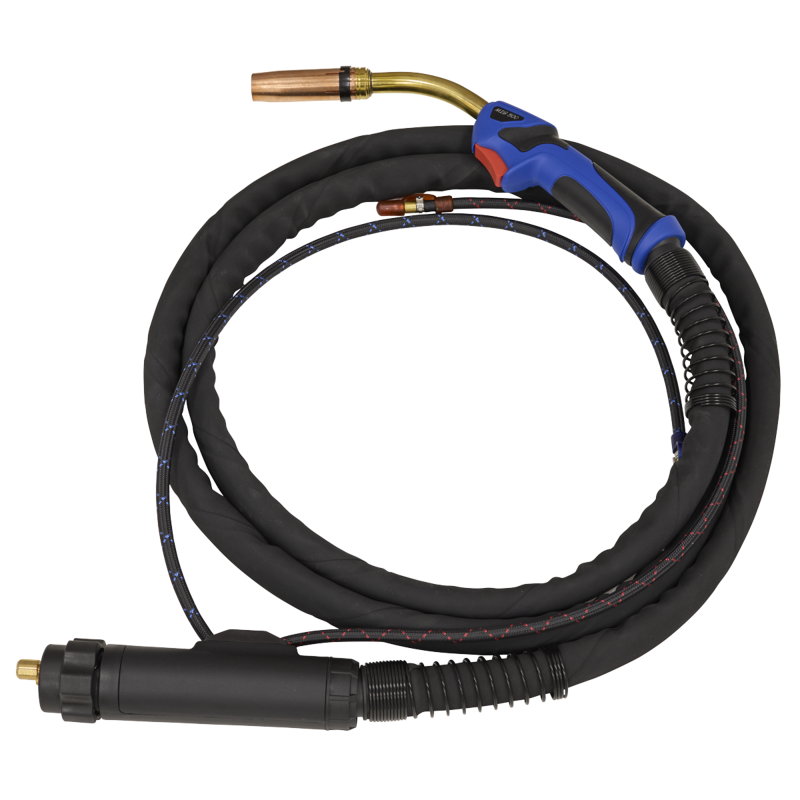

ACCESSORIES INCLUDED - Supplied with 2m power cable, 2m earth clamp, 3m Euro Mig torch and 2m Electrode holder.
WIRE CAPACITY - Wire capacity of 5-15kg with a diameter of 0.6mm to 1.6mm.
ELECTRODE CAPACITY - Electrode capacity from 1.6mm to 5mm.
3 YEAR GUARANTEE.
