Quick Code: BB-657508
Sealey MINIMIG120i MIG/TIG MMA (ARC/STICK) Inverter Welder 120A 230V
Also Try
Arc/TIG
Accessories
Consumables
Plasma
Buy Now
Product Specification
Absorbed Power
4.4kW
Brand
Sealey
Duty Cycle MIG
60% @ 120A, 100% @ 76A
Duty Cycle MMA/ARC
60% @ 120A, 100% @ 76A
Duty Cycle TIG
60% @ 120A, 100% @ 76A
Electrode Capacity
1.6-3.2mm
Insualtion Class
H
IP Rating
IP21S
Model No
MINIMIG120i
Nett Weight
6.9kg
Note*
To achieve maximum power a 16A supply may be required.
Supply
230V 16A*
Welding Current
10-120A
Wire Capacity
1kg Ø0.8/0.9/1.0mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire,
Reference
MINIMIG120i
Quick Order Code
BB-657508
Product Description
IGBT INVERTER TECHNOLOGY - IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 120A. 3 IN 1 FUNCTION - Multi-functional welder combining MIG/TIG and MMA applications into a single compact unit, ideal for workshops, garages, bodyshops, and mobile technicians.
HIGHLY PORTABLE - Ultra-compact unit, weighing only 6.9kg, features a carry strap for portability, allowing easy transport to job sites.
FEATURING - Hot start, anti-stick, forced air cooling and thermal cut out protection.
WELDING CAPABILITY - Unit can MIG weld using 1kg 0.8/0.9/1mm solid wire and 0.8/0.9mm flux cored MIG wire, MMA/ARC weld 1.6 up to 3.2mm electrode.

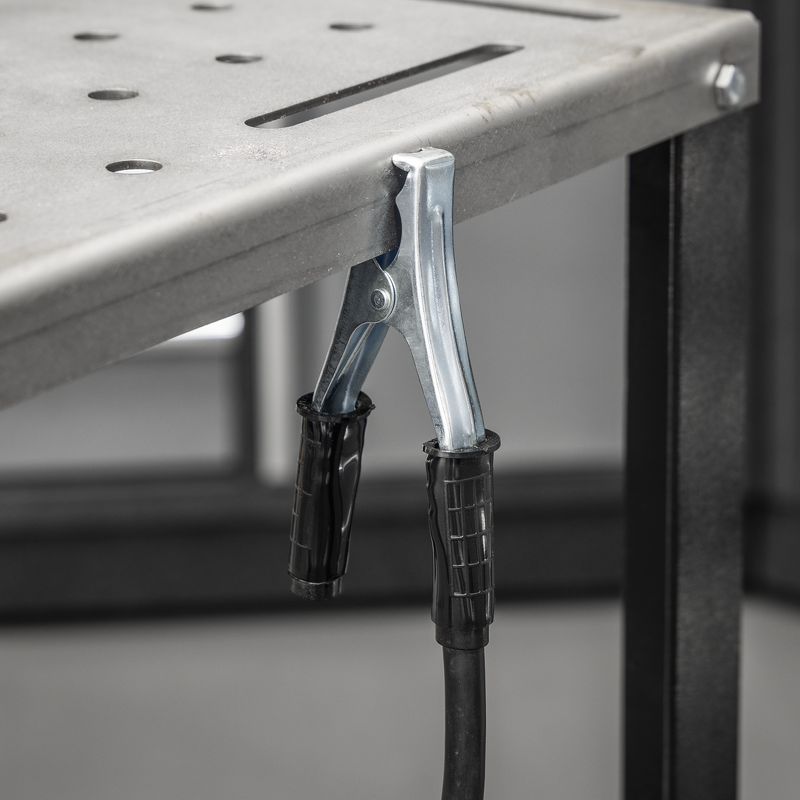

SUPPLIED WITH - Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.
DUTY CYCLE MIG - 60 120A, TIG - 60 120A, MMA/ARC - 60 120A.
