L Type Spider Jaw Complete Couplings
Quick Code: BB-16330

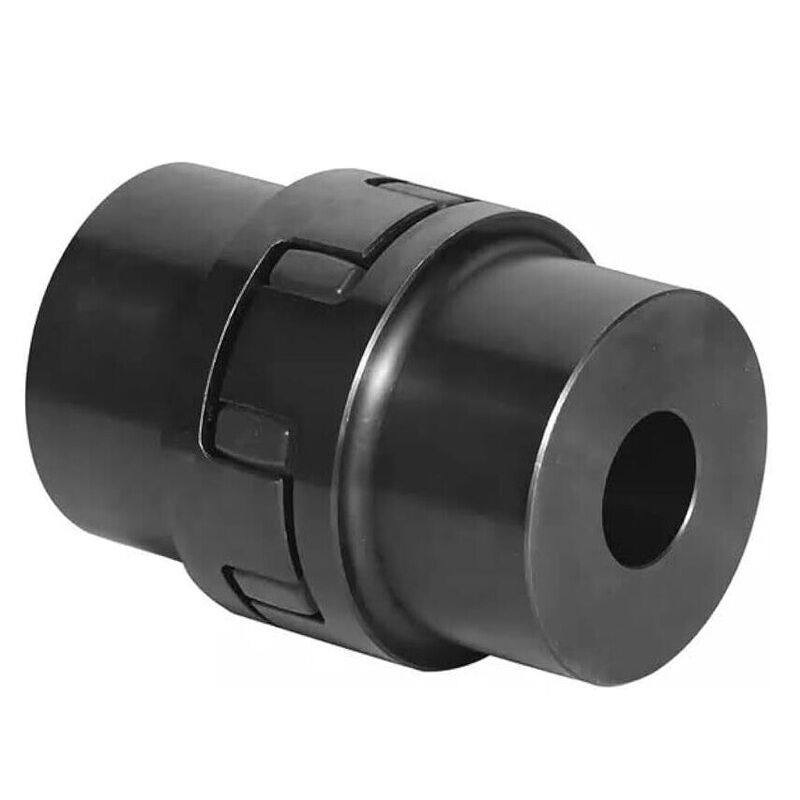

L075 Complete Pilot Bore Jaw Coupling
Also Try
Rotex Half Body
Rotex Spider Inserts
L Type Spider Jaw Coupling Insert
Renold Complete Jaw Couplings
SPZ Section Cast Iron - Taper Lock
HRC Couplings
Buy Now
Qty:
Product Specification
H/B Length Exc Jaw
13/16inch
Jaw Length
1/2inch
Length
2.1/8inch/Overall
Outside Dia
1.3/4inch
Part Number
L075
Brand
Medway
Quick Order Code
BB-16330
Product Description
The L075 Complete Pilot Bore Jaw Coupling is a precision-engineered flexible coupling designed for compact industrial power transmission applications. This Medway coupling offers reliable performance with the following key specifications:
Technical Specifications
- Max Bore Size: 7/8 inch
- Maximum RPM: 11,000
- Torque Capacity: 88.2 lbs
- H/B Length (Excluding Jaw): 13/16 inch
- Jaw Length: 1/2 inch
- Overall Length: 2.1/8 inch
- Outside Diameter: 1.3/4 inch
Horsepower Capacities
| RPM | Horsepower |
|---|---|
| 50 RPM | 0.035 |
| 100 RPM | 0.14 |
| 300 RPM | 0.38 |
| 600 RPM | 0.76 |
| 900 RPM | 1.26 |
| 1200 RPM | 1.68 |
| 1800 RPM | 2.52 |
| 3600 RPM | 1.04 |
Ideal Applications
The L075 Jaw Coupling is perfect for:
- Small machinery with compact power transmission needs
- Industrial equipment requiring flexible shaft connections
- Applications with moderate speed and torque requirements
- Pump and motor connections
- Conveyor systems
- Light industrial machinery
This coupling provides excellent misalignment compensation and vibration absorption, making it an essential component for reliable mechanical power transmission in various industrial settings.
