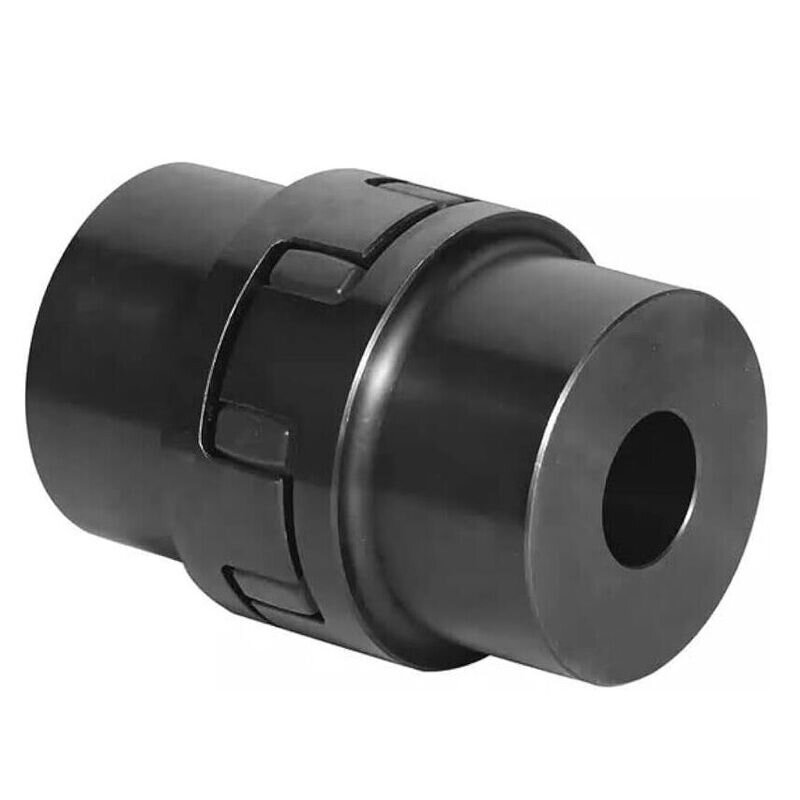

L070 Complete Pilot Bore Jaw Coupling
Also Try
Rotex Half Body
Rotex Spider Inserts
L Type Spider Jaw Coupling Insert
Renold Complete Jaw Couplings
Timken Taper Roller Bearing
F Tyre Couplings
Angular Contact Bearings
Buy Now
Qty:
Product Specification
H/B Length Exc Jaw
3/4inch
Jaw Length
1/inch
Length
2inch Overall
Outside Dia
1.23/64inch
Part Number
LO70
Brand
Medway
Quick Order Code
BB-16329
Product Description
The Medway L070 Complete Pilot Bore Jaw Coupling is a precision-engineered power transmission solution designed for high-performance industrial applications requiring compact and reliable mechanical connection.
Key Specifications
- Max Bore Size: 3/4 inch
- Maximum RPM: 14,000
- Torque Capacity: 44.1 lb-ft
- Physical Dimensions:
- H/B Length (Excluding Jaw): 3/4 inch
- Jaw Length: 1 inch
- Overall Length: 2 inches
- Outside Diameter: 1.23/64 inch
Performance Characteristics
The L070 coupling offers versatile horsepower capabilities across various RPM ranges:
| RPM | Horsepower |
|---|---|
| 50 RPM | 0.035 HP |
| 100 RPM | 0.070 HP |
| 300 RPM | 0.21 HP |
| 600 RPM | 0.42 HP |
| 900 RPM | 0.63 HP |
| 1200 RPM | 0.84 HP |
| 1800 RPM | 1.26 HP |
| 3600 RPM | 2.52 HP |
Typical Applications
- Small industrial machinery
- Precision equipment requiring minimal vibration
- Compact motor and drive shaft connections
- Low to medium power transmission systems
Designed for reliability and smooth power transfer, the Medway L070 provides an efficient solution for connecting rotating equipment in various industrial settings.
