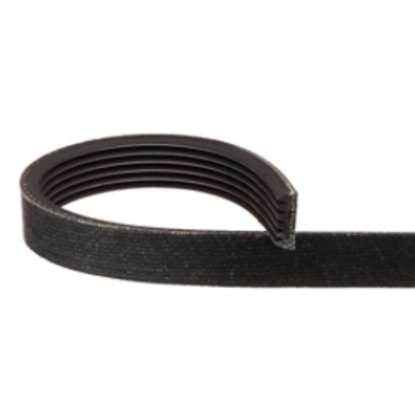

PJ1233/5 Gates Micro-V Belt (485J5)

Name: PJ1233/5 Gates Micro-V Belt (485J5)
Brand: Gates
SKU: 9465-20422
Price: 14.71 GBP
Availability: InStock

Longer lead time - please allow approximately 4-5 working days for delivery

Also Try

K Section Poly V Belts

L Section Poly V Belts

M Section Poly V Belts

Buy Now

Qty:

Product Specification

Code

485J

Length

48.5inch

Length (inch)

48.5inch

Length (mm)

1233mm

Number of Ribs

Pitch

2.34mm

Reference

9465-20422

Brand

Gates

Quick Order Code

BB-347160

Product Description

Gates Micro-V belts ensure outstanding performance on any industrial multi-ribbed drive. They cover a multitude of industrial applications and are suitable for industrial drives in washing machines, textile machines, vacuum cleaners, lawn mowers, machine tools, medical equipment and many more.

Construction:

Truncated ribs ensure flexibility, reduce heat build-up and improve rib crack resistance. They also enhance load-carrying capacity on small diameter pulleys

Can be installed on grooved DriveR and flat DriveN pulley

High modulus, low stretch polyester tensile member provides superior resistance to fatigue and shock loads

All elastomeric rubber compound provides oil and heat resistance

Belts will operate in standard pulleys provided the pulleys are manufactured to the DIN 7867 or ISO 9982 standard for the specific cross-section

Specially formulated fibre reinforced undercord that improves belt stability

Key Features

Extremely smooth and cool running

Very high power capacity per rib

Long life due to extra load-carrying capacity

Improved performance on back idlers

Smaller drive package

Tolerant of pulley groove debris

Static conductive (ISO 1813) and can as such be used in the conditions described in the Directive 2014/34/EU- ATEX (except PK profile)

Temperature range: -30 deg C to +60 deg C (PJ, PL, PM) or 50 deg C to +120 deg C (PK)
