Quick Code: BB-657510

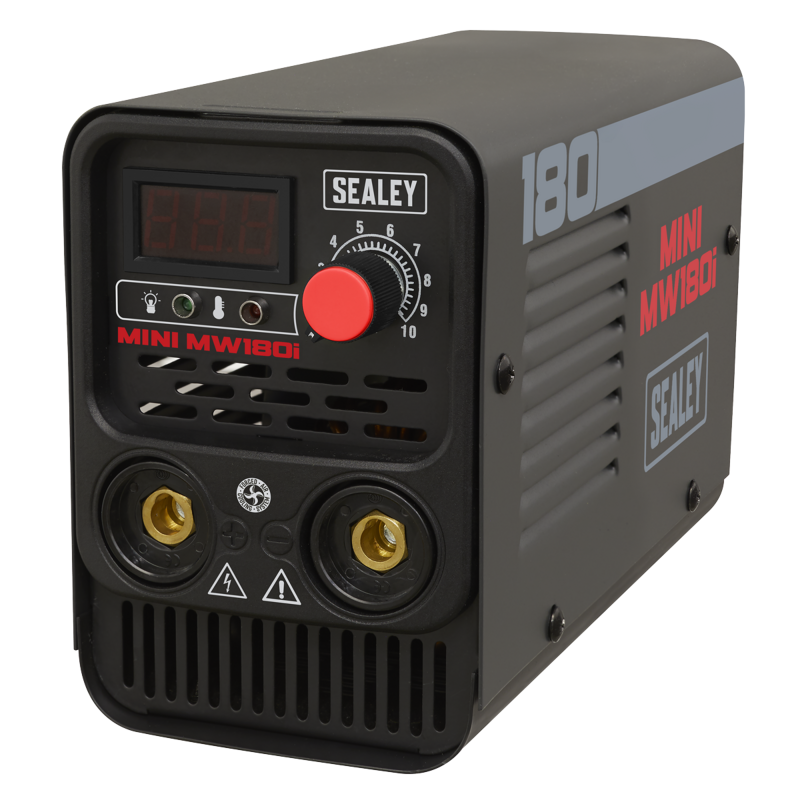

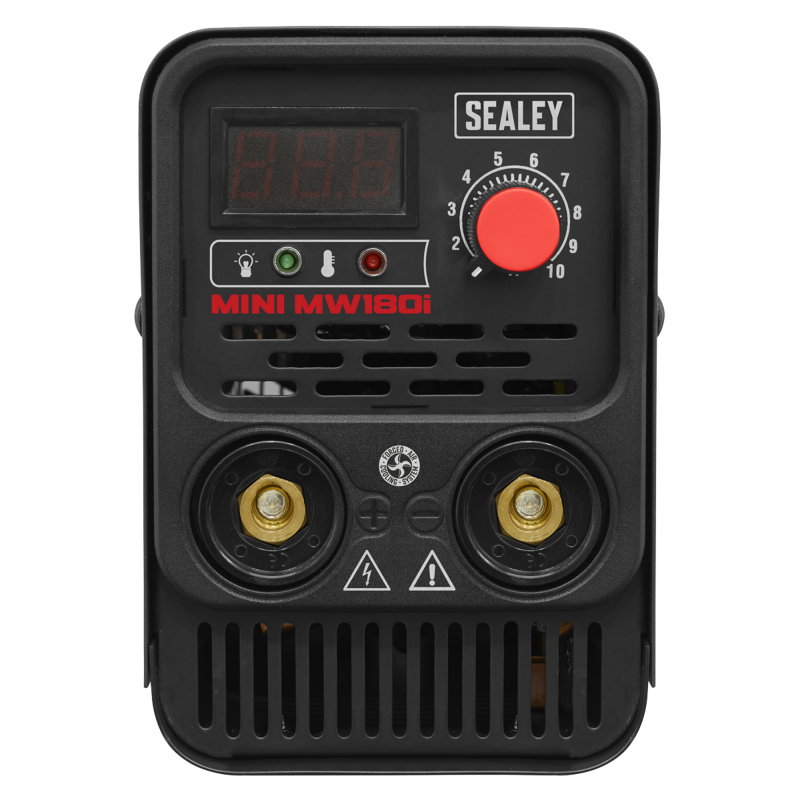

Sealey MINIMW180i Inverter Welder 180A/230V
Also Try
MIG Wire & Accessories
Welding & Accessories
MIG Welders
Spot & Stud Welders
Oxyacetylene
Buy Now
Product Specification
*Note
To achieve maximum power a 16A supply may be required.
Absorbed Power
7.8kW
Brand
Sealey
Duty Cycle
100% @ 140A, 60% @ 180A
Electrode Capacity
1.6-5mm
IP Rating
IP21S
Model No
MINIMW180i
Nett Weight
4.1kg
Plug Type
Bare Wire
Power Supply Cable Length
2m
Supply
230V - 16A*
Weight
4.7kg
Welding Current
20-180A
Reference
MINIMW180i
Quick Order Code
BB-657510
Product Description
ULTRA COMPACT AND LIGHTWEIGHT - Ultra-compact and lightweight unit weighing just 4kg approx.IDEAL FOR A MOBILE TECHNICIAN - Portability allows the welder to be taken to the job at hand, ideal for mobile technicians.
SUITABLE FOR MOST ARC/MMA WELDING RODS - Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from 1.6mm up to 5mm.
USER FRIENDLY FUNCTIONS - Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions.

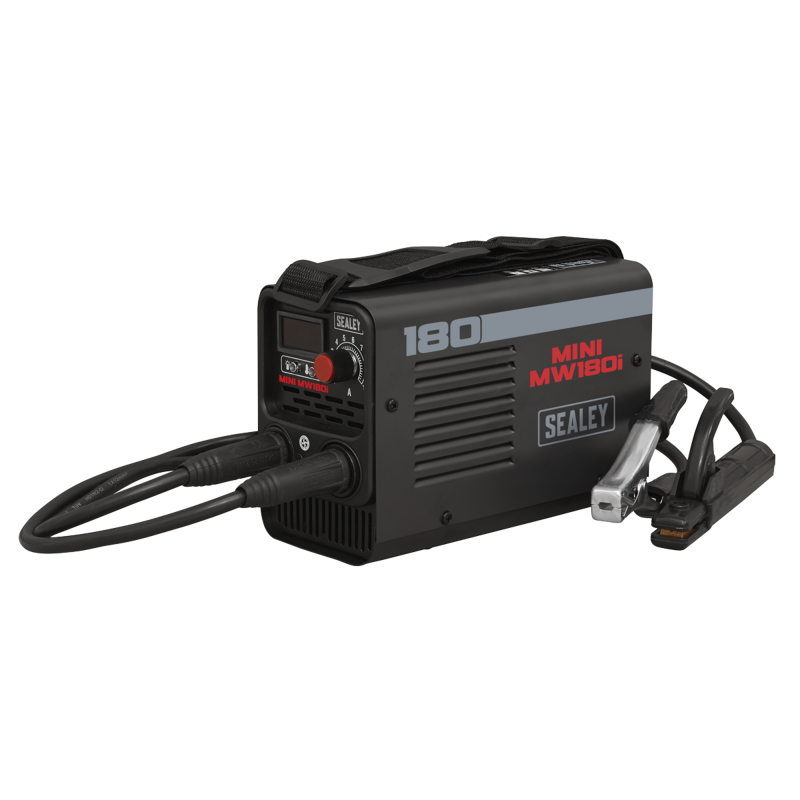

SUPPLIED WITH - Supplied with 1.6m 25mm cable with electrode holder and a 1.4m 25mm earth clamp and cable, both with 10-25 dinse connectors.
