Quick Code: BB-558911

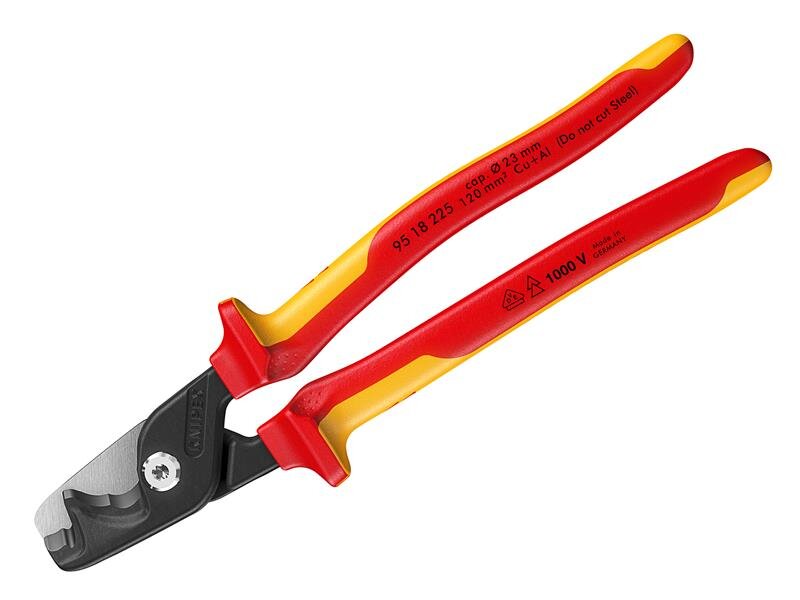

Knipex VDE StepCut XL Cable Shears 225mm
Knipex VDE StepCut® XL Cable Shears have a large cutting capacity and provide noticeably easier cutting than compact cable shears. The cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC. With dual cutting areas: the stepped cutting edge holds small and larger cables close to the joint during the cut; the front cutting edge cuts very large cables step by step.
They offer easy one or two-handed operation with minimum handle opening for large cable diameters. The adjustable, high-leverage bolted joint provides precise and smooth cutting. Fitted with VDE multi-component grip. VDE tested up to 10,000V and safe for work up to 1,000V. They conform to DIN EN / IEC 60900. A pinch guard prevents operators\' fingers being pinched.
NOT suitable for steel-reinforced cables, e.g. ACSR.
Specifications:
Cutting Capacity: Solid Copper or Aluminium Cables: 35mm², Stranded Cables: 70mm²and Fine Stranded Cables: 120mm².
Overall Length: 225mm.
