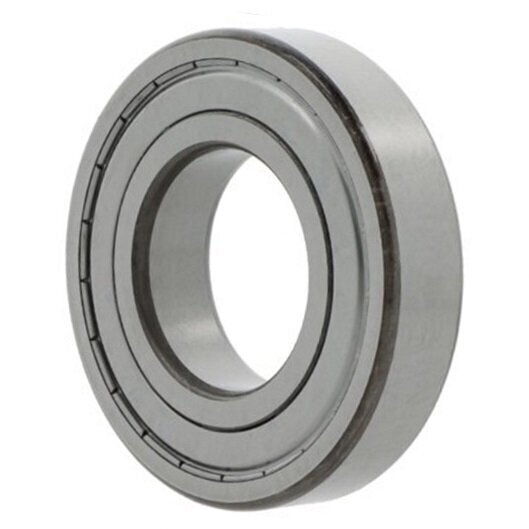

SR2-5-2Z ZEN Stainless Shielded Deep Groove Ball Bearing 3.175mm x 7.938mm x 3.571mm
Help Articles
Also Try
Metric Oil Seals
Imperial Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Bib & Brace
Drill Blanks
Toro/Wheel
Buy Now
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
3.175mm = 1/8inch
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
7.9375mm = 5/16inch
Sealing
Shielded
Temperature range
-30 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
3.571mm = 9/64inch
Reference
SR2-5-2Z
Additional Reference:
10128385
Quick Order Code
BB-517687
Product Description
The SR2-5-2Z ZEN Stainless Shielded Deep Groove Ball Bearing is a precision-engineered miniature bearing designed for compact and demanding mechanical applications. Crafted entirely from high-quality stainless steel, this bearing offers exceptional corrosion resistance and durability in challenging environments.
Key Features:
- Single row deep groove ball bearing configuration
- Stainless steel construction for superior corrosion resistance
- Shielded design protects against dust and contaminants
- Standard radial clearance for reliable performance
- Sheet steel cage for enhanced stability
- Operates effectively in temperature range from -30°C to +150°C
Technical Specifications:
- Inside Diameter: 3.175mm (1/8 inch)
- Outside Diameter: 7.9375mm (5/16 inch)
- Width: 3.571mm (9/64 inch)
- Material: Stainless steel
- Tolerance Class: P0/PN2 / ABEC 1
- Bore Type: Cylindrical
- Sealing: Shielded
- Current Insulation: None
Typical Applications:
- Precision medical equipment
- Small electrical motors
- Robotics and automation systems
- Aerospace instrumentation
- Dental and surgical tools
- High-precision measurement devices
The ZEN SR2-5-2Z bearing's compact dimensions and stainless steel construction make it an ideal solution for applications requiring reliable performance in compact, potentially corrosive, or high-precision environments.
