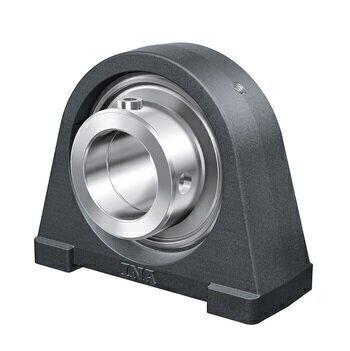

PSHE20 INA 20mm Pillow Block Housed

£28.09 Was £31.21 exc VAT (£33.71 inc VAT)
In Stock   Free Delivery Available   Next Day Order by 4pm
Buy Now
Qty:
Product Specification
Alternative Part Number
PSHE20-XL-N
Bolt Hole Centre (J)
50.8mm
Bore Size (d)
20mm
Height (H2)
64mm
Housing Width (A)
32mm
RHP Equivalent
SNP20EC
Total Length (L)
65mm
Reference
PSHE20
Brand
INA
Quick Order Code
BB-151674
Product Description
PSHE20 INA 20mm Pillow Block Housed

Cast iron housing, radial insert ball bearing with eccentric locking collar, P seals.

The inserts can be removed allowing you to replace with a new insert once required which can be ordered separately.

d 20 mm
L 65 mm
H2 64 mm
A 32 mm
A1 19 mm
B1 31 mm
d3 max 33 mm
H 33,3 mm
J 50,8 mm
K M8
Q Rp1/8
S1 23,5 mm
m 0,46 kg Mass
Cr 13600 N Basic dynamic load rating, radial
C0r 6600 N Basic static load rating, radial
SHE04 Designation of housing
GRAE20-XL-NPP-B Designation of bearing
KASK04 Bearing end cap, closed design.
To be ordered separately.
Slot for bearing end cap.
