Quick Code: BB-519864

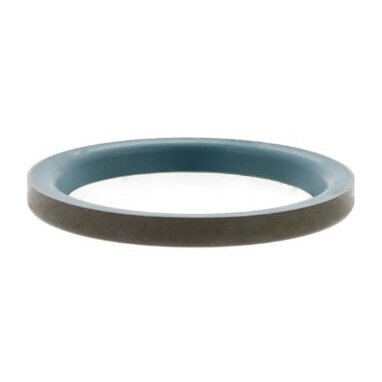

GR20X26X4 INA Nitrile Rubber Single Lip Metal Cased Oil Seal
Also Try
Oil Seals
O-rings
Gland Packing
O-ring Cord
Speedi Sleeves (Shaft Repair)
Buy Now
Qty:
Product Specification
Brand
INA
Inside Diameter
19.4mm
Lip Type
Single Lip
Material
NBR (Perbunan)
Outside Diameter
26.08mm
Pressure resistance
Up to 0.5 bar max.
Temperature range
-30 to +110 deg C
Tension spring
Without
Version
With an external steel reinforcement
Width
4mm
Reference
GR20-26-4
Additional Reference:
10134997
Quick Order Code
BB-519864
Product Description
GR20X26X4 INA Nitrile Rubber Single Lip Oil SealSeals are crucial in safeguarding bearings from contamination. The use of inadequate seals can allow contaminants to infiltrate the bearing or result in an excessive loss of lubricant. The presence of solid contaminants can cause wear and/or fatigue in the raceways and rolling elements.
INA sealing rings were specifically designed for needle roller bearings and have been on the market for nearly fifty years. Throughout this period, they have demonstrated exceptional effectiveness in the automotive and engine manufacturing sectors, as well as in machinery and equipment construction.
GR sealing rings feature a single lip and are constructed from synthetic NBR elastomer, distinguished by their green color. They are reinforced with external steel to enhance their rigidity.
