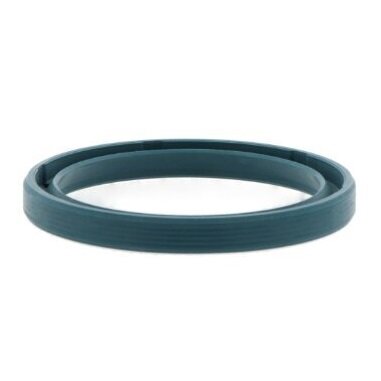

G42X52X4 INA Nitrile Rubber Single Lip Oil Seal
Also Try
Oil Seals
O-rings
Gland Packing
O-ring Cord
Speedi Sleeves (Shaft Repair)
Buy Now
Qty:
Product Specification
Brand
INA
Inside Diameter
42mm
Lip Type
Single Lip
Material
NBR (Perbunan)
Outside Diameter
52mm
Pressure resistance
Up to 0.5 bar max.
Temperature range
-30 to +110 deg C
Tension spring
Without
Version
Rubber coating
Width
4mm
Reference
G42-52-4
Additional Reference:
10132228
Quick Order Code
BB-519058
Product Description
G42X52X4 INA Nitrile Rubber Single Lip Oil SealSeals are crucial in safeguarding bearings from contamination. The use of inadequate seals can result in the intrusion of contaminants into the bearing or allow an excessive amount of lubricant to escape. The presence of solid contaminants can cause wear and fatigue in both the raceways and rolling elements.
INA sealing rings were specifically designed for needle roller bearings and have been on the market for nearly fifty years. Throughout this period, they have demonstrated exceptional effectiveness in automotive and engine manufacturing, as well as in the construction of machinery and equipment.
G sealing rings feature a single lip and are constructed from synthetic NBR elastomer, distinguished by their green color. They incorporate a rubber-encased angled reinforcing ring made of steel, which provides enhanced stability. The rubber outer surface is designed with a wave profile on the outside diameter, offering several advantages:
- Enhanced sealing capability on the outside diameter
- Decreased press-in forces
- Flexibility in installation, allowing the seal lip to face either outward or inward based on the required sealing action.
These sealing rings are particularly well-suited for:
- Split housings
- Housing materials that exhibit significant thermal expansion, such as aluminum
- Housings with a rough surface finish (Ra6.3).
