Quick Code: BB-704603

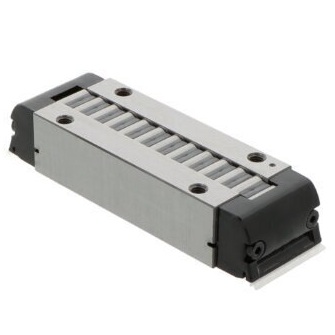

RUS38206-KS-GR3/-10-15 INA Linear Recirculating Bearing Unit
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
THK Carriages
NSK Carriages
Ewellix Carriages
2 Bolt Flanged Bearings
New Tech Lubes
Buy Now
Product Specification
Ball-/Roller rows
Single row
Brand
INA
Material
Steel, plastic
Seal
No seal
Tolerance class
G3
Reference
RUS38206-KS-GR3/-10-15
Equivalent to:
RUS38206-KS.GR3/-10-15
Quick Order Code
BB-704603
Product Description
The RUS38206-KS-GR3/-10-15 INA Linear Recirculating Bearing Unit is a precision-engineered linear motion component from INA's respected linear guidance portfolio, designed for demanding industrial applications requiring smooth, accurate linear movement combined with high load-carrying capability.
Product Overview
The RUS38206-KS-GR3/-10-15 represents a robust solution within INA's linear recirculating bearing unit range, combining a compact profile with substantial load ratings. With a high basic dynamic load rating, this unit is well suited to applications where both precision and durability are essential priorities.
Key Features
- Brand: INA - leading precision linear motion technology provider
- Precision Grade (GR3): High precision grade for tight dimensional tolerances and reliable positioning
- Sorting In Micron (-10-15): Micron-level sorting ensuring consistent, repeatable dimensional accuracy
- Sealing: No seal configuration
- Basic Dynamic Load Rating (C): 305,000 N for high load-carrying capability
Weight and Dimensions
- Inner (d): 20 mm (0.7874 inch)
- Outer (D): 52 mm (2.0472 inch)
- Width (B): 38 mm (1.4961 inch)
- Height (H): 38 mm
- Total Length (L tot): 216.1 mm
- Width (b): 52 mm
- Weight: 2.53 kg
Ideal Applications
The RUS38206-KS-GR3/-10-15 is particularly suited for:
- CNC machinery and machine tool positioning applications
- Industrial robotic systems and material handling equipment
- Manufacturing equipment demanding high dynamic load capacity and repeatable accuracy
