Quick Code: BB-509329

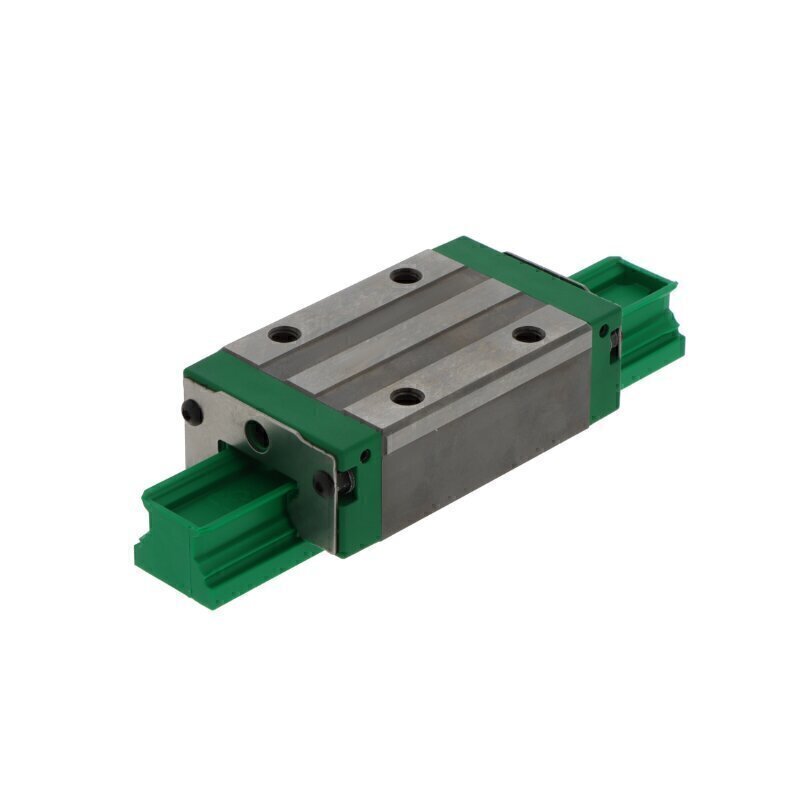

KWVE45-B-SN-V2-G3 INA Carriage
The KWVE45-B-SN-V2-G3 INA Carriage is a precision block carriage engineered for high-capacity linear motion applications requiring robust performance in space-constrained environments. This four-row ball carriage combines heavy-duty capability with a compact slimline and low design profile, making it ideal for applications demanding both strength and installation flexibility.
Key Features:
- Design: Block carriage configuration with slimline and low profile for compact installation in space-limited applications
- Rolling Elements: Four-row ball bearing system without ball chain for optimized performance and straightforward maintenance
- Preload: Medium preload for enhanced load distribution, improved rigidity, and consistent smooth operation
- Material Construction: Steel body with plastic components for durability, reliability, and lightweight performance
- Lubrication: Relubricatable design for extended service life and convenient field maintenance throughout the operational lifecycle
- Sealing: End seals and sealing strips protect against contamination and maintain precision in challenging industrial environments
- Tolerance Class: G3 grade ensures consistent, accurate linear motion with reliable positioning
- Temperature Range: Operates reliably from -10°C to +80°C for diverse industrial applications
- Series: 45 series delivers high load capacity for demanding heavy-duty applications
- Version: Slimline and low design configuration for applications requiring compact mounting in confined spaces
Ideal Applications:
The KWVE45-B-SN-V2-G3 is well-suited for heavy-duty manufacturing equipment, industrial automation systems, material handling machinery, and precision positioning applications where high load capacity and space efficiency are critical. The medium preload configuration provides an excellent balance between precision and load-bearing capability, while the relubricatable design makes it ideal for applications requiring periodic maintenance in demanding industrial environments. The compact slimline profile is particularly valuable for equipment designs where headroom or lateral space is limited without compromising performance or durability.
