Quick Code: BB-509033

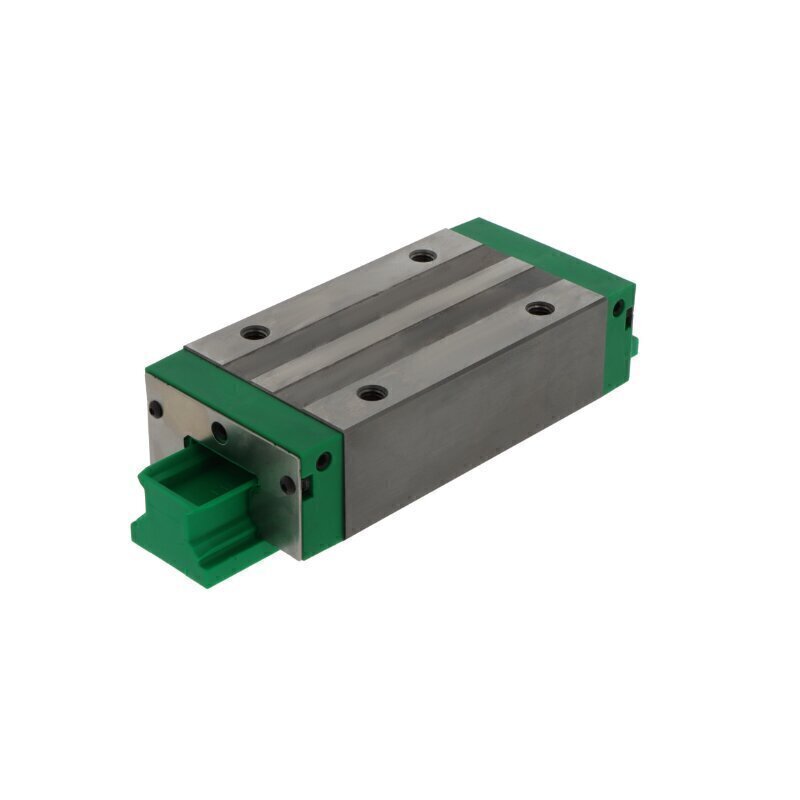

KWVE45-B-SNL-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
45 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Slimline, low and long design
Reference
KWVE45BSNLV1G3
Additional Reference:
10099759
Quick Order Code
BB-509033
Product Description
The KWVE45-B-SNL-V1-G3 is a precision INA block carriage from the 45 series, engineered for smooth and accurate linear motion in demanding industrial applications. This four-row ball carriage combines robust performance with flexible installation options, making it an ideal choice for systems requiring reliable linear guidance.
Key Specifications:
- Design: Block carriage with slimline, low and long design for versatile mounting configurations
- Rolling Elements: Four-row ball bearing arrangement without ball chain for optimized load distribution
- Preload: Light preload setting for balanced performance between load capacity and operating smoothness
- Material: Steel with plastic components for durability and corrosion resistance
- Tolerance Class: G3 for precise dimensional accuracy in demanding applications
- Sealing: End seals and sealing strips for enhanced protection against contaminants
- Lubrication: Relubricatable configuration for extended service life and maintenance flexibility
- Operating Temperature: -10 to +80°C for reliable performance across varied environmental conditions
Ideal Applications:
This carriage is well-suited for industrial automation, packaging machinery, material handling systems, and precision assembly equipment where smooth linear motion, moderate to high load capacity, and easy maintenance are essential requirements.
Reference: KWVE45BSNLV1G3
