Quick Code: BB-509027

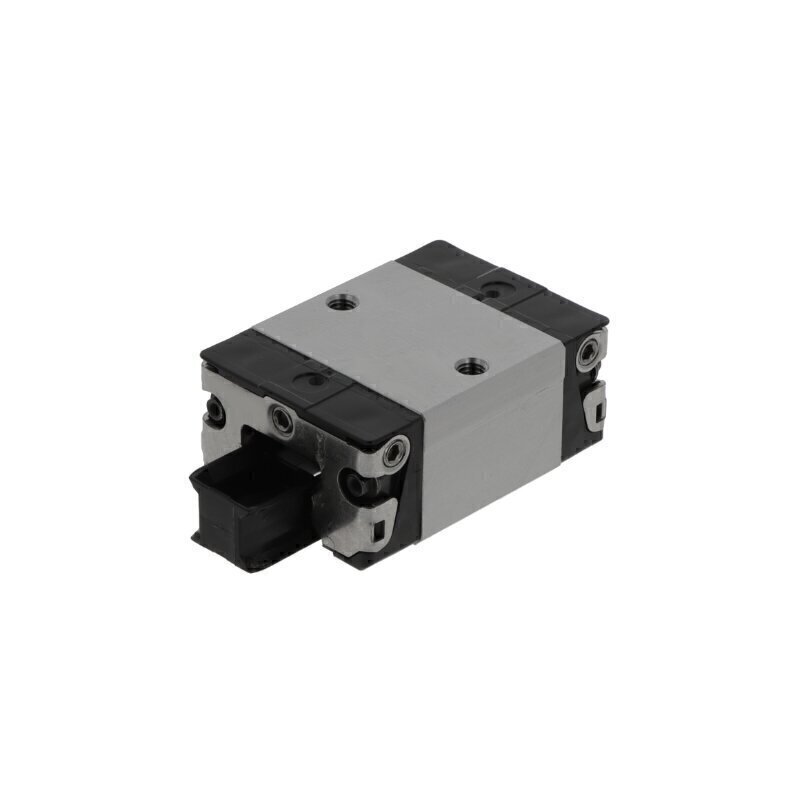

KWVE45-B-ESC-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
45 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Upgraded short, slim type
Reference
KWVE45BESCV1G3
Additional Reference:
10099752
Quick Order Code
BB-509027
Product Description
The KWVE45-B-ESC-V1-G3 INA Carriage is a precision linear motion component engineered for demanding industrial applications requiring smooth, accurate linear movement. This block carriage combines compact design with reliable performance, making it ideal for space-constrained installations where precision and durability are essential.
Key Specifications:
- Series: 45 series
- Design: Block carriage - upgraded short, slim type
- Rolling Elements: Ball type, four-row configuration
- Material: Steel with plastic components
- Preload: Light preload for reduced friction and smooth operation
- Ball Chain: Without ball chain
- Lubrication: Relubricatable - designed for maintenance and extended service life
- Sealing: End seals and sealing strips for protection against contaminants
- Tolerance Class: G3
- Operating Temperature Range: -10 to +80°C
Ideal Applications:
This carriage is well-suited for:
- Compact linear positioning systems
- Machine tool guideways
- Automation equipment with space constraints
- Manufacturing equipment requiring reliable linear motion
- Applications demanding light to moderate load capacities with precision guidance
The relubricatable design ensures easy maintenance and extended operational life, while the robust four-row ball configuration provides consistent performance in challenging industrial environments.
