Quick Code: BB-508974

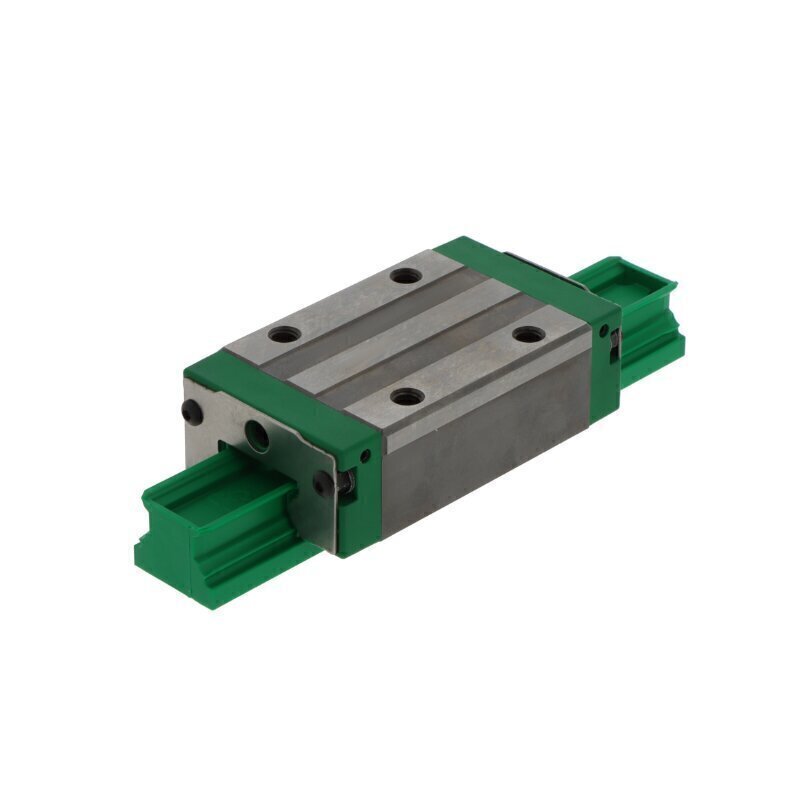

KWVE35-B-SN-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
35 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Slimline and low design
Reference
KWVE35BSNV1G3
Additional Reference:
10099623
Quick Order Code
BB-508974
Product Description
The KWVE35-B-SN-V1-G3 INA Carriage is a precision linear motion component engineered for applications requiring smooth, accurate linear movement in compact spaces. This slimline block carriage combines advanced design with reliable performance for demanding industrial environments.
Key Specifications:
- Design: Block carriage with slimline and low profile design
- Series: 35 series with four-row ball rolling elements
- Material Composition: Steel body with plastic components for durability and corrosion resistance
- Rolling Elements: Ball type (without ball chain)
- Preload: Light preload for optimal load distribution and smooth operation
- Lubrication: Relubricatable configuration for extended service life and maintenance flexibility
- Sealing: End seals and sealing strips for protection against contamination
- Tolerance Class: G3 for precise dimensional accuracy
- Operating Temperature Range: -10 to +80°C
Ideal Applications:
This carriage is particularly suited for industrial automation, machinery requiring space-constrained linear guidance, and applications demanding reliable long-term performance with minimal maintenance interruption. The combination of light preload and four-row ball configuration makes it an excellent choice for systems requiring a balance between load capacity and smooth motion.
