Quick Code: BB-509315

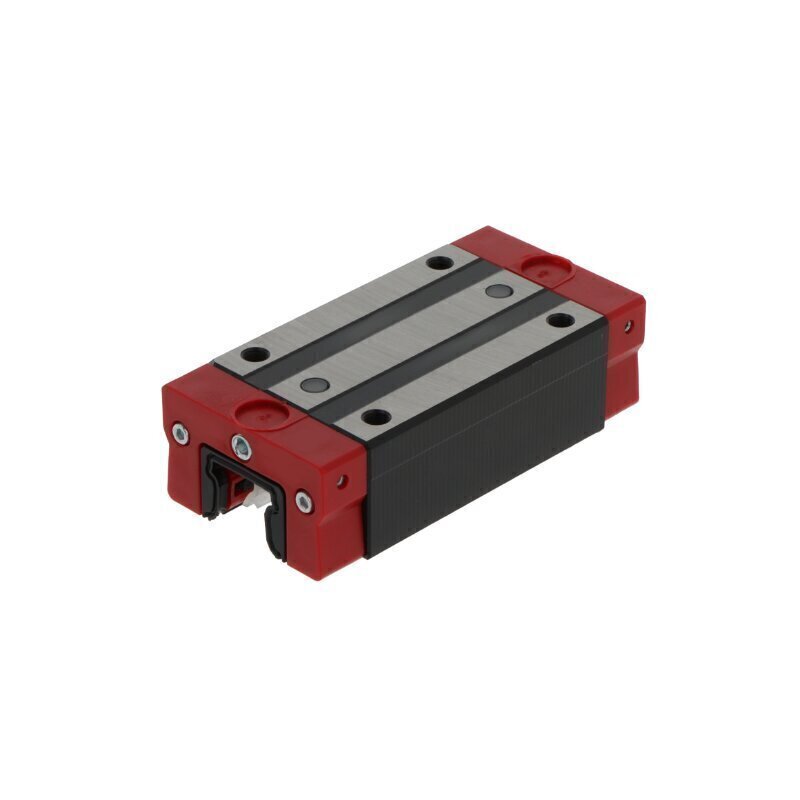

KWVE35-B-HL-V1-G4 INA Carriage
The KWVE35-B-HL-V1-G4 INA Carriage is a precision linear motion component engineered for industrial applications demanding reliable, smooth linear movement. This block carriage combines advanced engineering with practical design features to deliver consistent performance across demanding applications.
Key Specifications:
- Series: 35 series
- Design: Block carriage configuration with high and long design version
- Rolling Elements: Ball type with four-row arrangement for enhanced load distribution
- Preload: Light preload for optimal balance between rigidity and operational smoothness
- Material Construction: Steel with plastic components for durability and corrosion resistance
- Tolerance Class: G4 for precise dimensional accuracy
- Operating Temperature Range: -10 to +80°C
- Sealing: End seals and sealing strips for protection against contaminants
- Lubrication: Relubricatable design for extended service life and maintenance flexibility
- Ball Chain: Without ball chain
Applications:
The KWVE35-B-HL-V1-G4 is ideal for industrial automation, machinery assembly lines, packaging equipment, and other applications requiring dependable linear guidance with moderate loads. The high and long design version provides extended travel capabilities and enhanced load-bearing characteristics. The relubricatable design makes it particularly suitable for environments where regular maintenance access is available.
As part of our extensive INA carriage portfolio, this component delivers the precision engineering and reliability expected from INA linear motion solutions.
