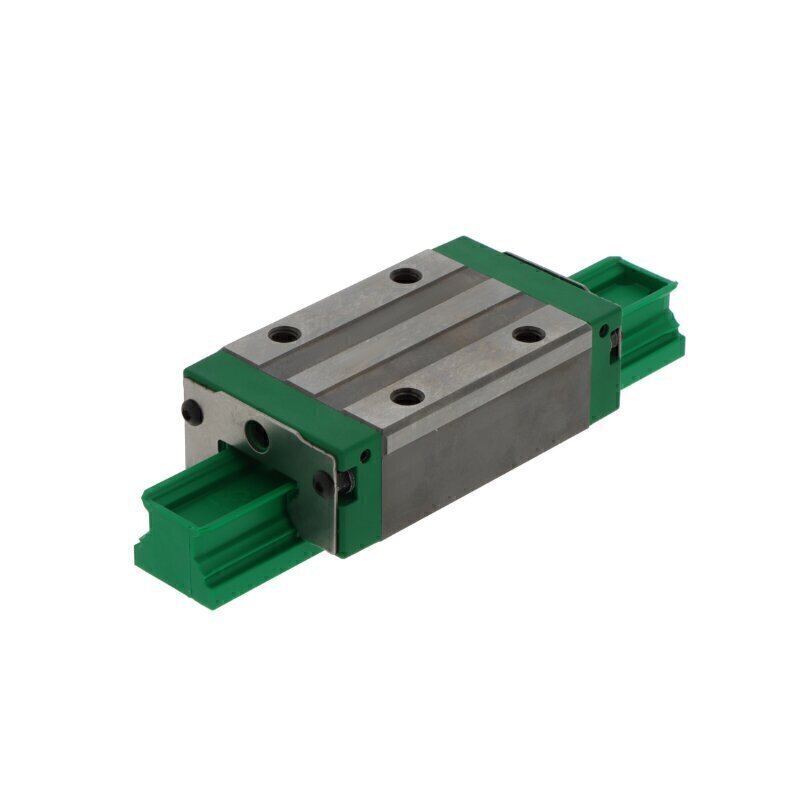

KWVE30-B-SN-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
30 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Slimline and low design
Reference
KWVE30BSNV1G3
Additional Reference:
10098128
Quick Order Code
BB-508731
Product Description
The KWVE30-B-SN-V1-G3 INA Carriage is a precision linear motion component engineered for applications demanding reliable, smooth operation in confined spaces. This slimline and low-profile block carriage combines compact design with robust performance, making it ideal for automation systems, machinery tooling, and industrial equipment where space optimization is critical.
Key Specifications:
- Design: Block carriage with slimline and low configuration
- Series: 30 series
- Rolling Elements: Ball type, four-row configuration
- Preload: Light preload for smooth, responsive motion
- Material: Steel with plastic components for durability and lightweight performance
- Tolerance Class: G3 for reliable precision
- Ball Chain: Without ball chain
- Lubrication: Relubricatable for extended service life and maintenance flexibility
- Sealing: End seals and sealing strips for effective contamination protection
- Operating Temperature Range: -10 to +80°C
Applications:
The KWVE30-B-SN-V1-G3 is particularly well-suited for:
- Compact automation and assembly equipment
- Machine tool positioning systems
- Industrial robotics with space constraints
- Precision measurement and inspection equipment
- Medical and laboratory instrumentation
This carriage delivers the precision engineering and reliability expected from INA, with the added benefit of a compact profile that maximizes installation flexibility in demanding industrial applications.
