Quick Code: BB-509314

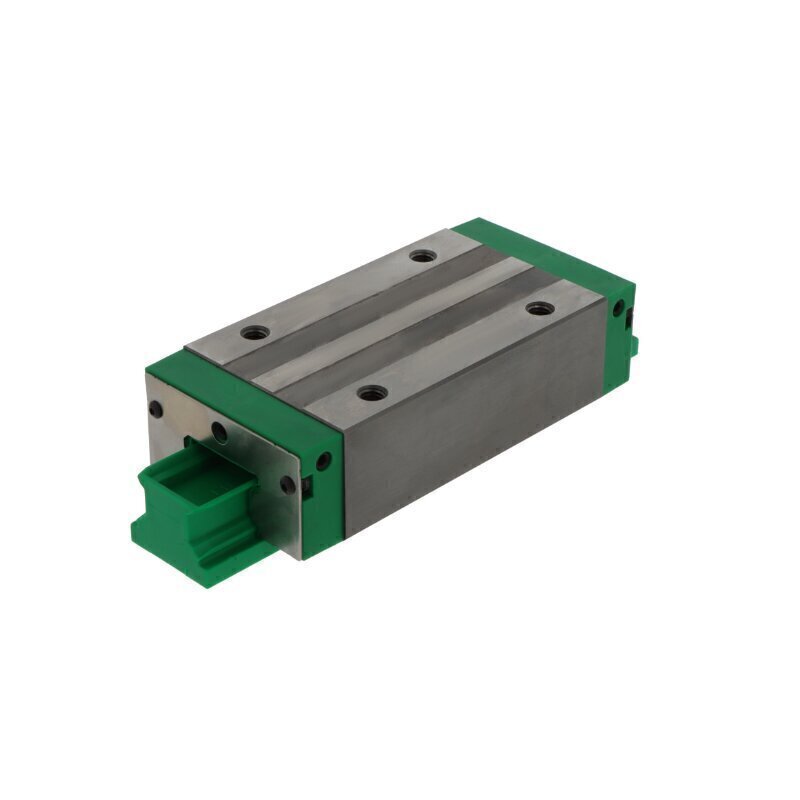

KWVE30-B-SNL-V1-G3 INA Carriage
The KWVE30-B-SNL-V1-G3 INA Carriage is a precision-engineered block carriage designed for industrial linear motion applications requiring reliable, smooth movement with excellent load-carrying capacity in compact installations. This 30 series carriage combines robust engineering with space-efficient design to meet demanding industrial requirements while maintaining a low profile footprint.
Key Specifications:
- Design: Block carriage configuration for secure, integrated mounting solutions
- Series: 30 series - part of INA's comprehensive carriage portfolio
- Rolling Elements: Four-row ball bearing system for optimal load distribution and smooth operation
- Preload: Light preload for balanced performance between precision and reduced friction
- Material: Steel with plastic components for durability and lightweight characteristics
- Lubrication: Relubricatable design for extended service life and cost-effective maintenance
- Sealing: End seals and sealing strips to protect against contamination in various operating environments
- Tolerance Class: G3 precision grade for consistent, accurate linear motion
- Version: Slimline, low and long design for flexible mounting options with extended travel distances in space-constrained applications
- Operating Temperature: -10 to +80°C for reliable performance across diverse industrial environments
- Ball Chain: Without ball chain configuration for straightforward installation and maintenance
Applications:
The KWVE30-B-SNL-V1-G3 is ideal for industrial automation, manufacturing equipment, packaging machinery, and automated assembly systems where consistent linear motion, load capacity, and compact installation space are essential. The slimline, low and long design variant makes it particularly suitable for applications requiring extended stroke lengths while maintaining a minimal vertical profile, such as material handling systems, conveyor equipment, and space-constrained production environments. The relubricatable maintenance option ensures cost-effective long-term operation in demanding production settings.
Brand: INA | Reference: KWVE30BSNLV1G3
