Quick Code: BB-509310

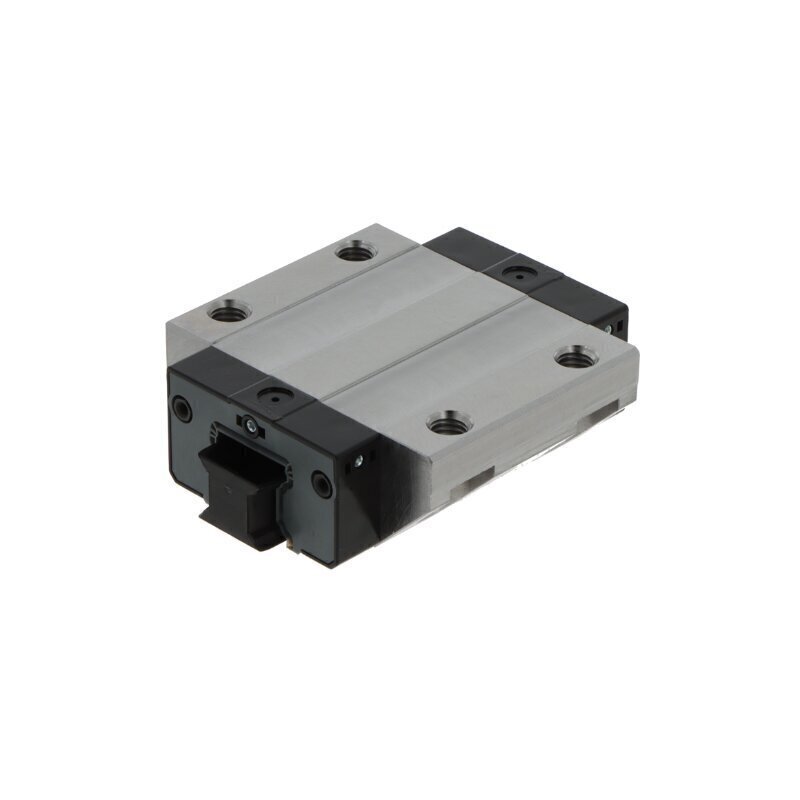

KWVE30-B-N-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Flange carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
30 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Low design
Reference
KWVE30BNV1G3
Additional Reference:
10101736
Quick Order Code
BB-509310
Product Description
The KWVE30-B-N-V1-G3 INA Carriage is a precision linear motion component engineered for applications demanding reliable guided movement with balanced load capacity and smooth operation. This flange carriage combines compact low-profile design with practical maintenance capabilities, making it ideal for space-constrained industrial machinery, automation equipment, and positioning systems.
Key Specifications:
- Design: Flange carriage in low-profile configuration
- Series: 30 series
- Rolling Elements: Ball type in four-row arrangement for superior load distribution
- Material: Steel with plastic components for durability and optimized weight
- Preload: Light preload for smooth operation with responsive movement characteristics
- Lubrication: Relubricatable via convenient lubrication nipple for extended service life and flexible maintenance intervals
- Sealing: End seals and sealing strips protect against contamination and environmental ingress
- Tolerance Class: G3 for consistent precision performance
- Temperature Range: -10°C to +80°C
- Ball Chain: Without ball chain configuration
Ideal Applications:
This carriage is particularly suited for:
- Compact machinery installations where vertical space optimization is critical
- Precision automation equipment requiring reliable linear guidance
- Industrial conveying and transfer systems
- Positioning systems demanding balanced load capacity with smooth motion
- General industrial applications where maintenance accessibility is important
As part of INA's extensive range of over 290 linear carriages, the KWVE30-B-N-V1-G3 delivers the precision engineering and quality reliability you can depend on for demanding industrial applications requiring a space-efficient, low-profile solution.
