Quick Code: BB-509017

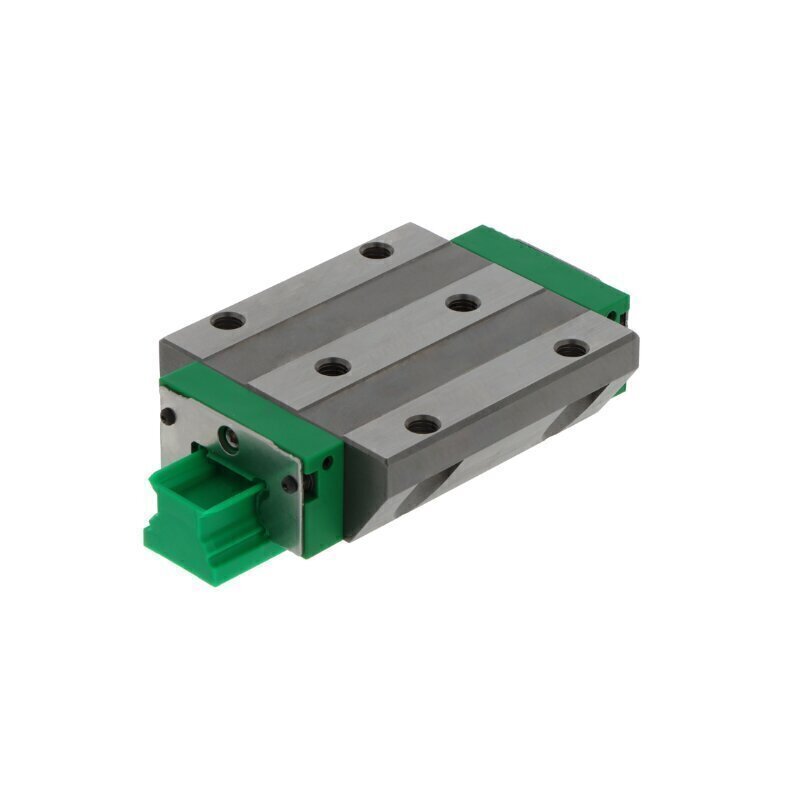

KWVE30-B-NL-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Flange carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
30 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Low and long design
Reference
KWVE30BNLV1G3
Additional Reference:
10099740
Quick Order Code
BB-509017
Product Description
The KWVE30-B-NL-V1-G3 INA Carriage is a precision linear motion component engineered for applications requiring smooth, accurate linear movement with extended travel capabilities. This flange carriage combines reliable performance with a low and long design profile, making it ideal for demanding industrial automation systems where space optimization and extended stroke lengths are critical.
Key Specifications:
- Design: Flange carriage with low and long design for extended travel and compact installation heights
- Series: 30 series
- Rolling Elements: Ball type with four-row configuration
- Material: Steel with plastic components for durability and reduced weight
- Preload: Light preload for balanced load capacity and smooth operation
- Ball Chain: Without ball chain
- Lubrication: Relubricatable for extended service life and maintenance flexibility
- Sealing: End seals and sealing strips for protection against contamination
- Tolerance Class: G3 for reliable precision performance
- Operating Temperature Range: -10 to +80°C
Typical Applications:
This carriage is well-suited for:
- Linear motion systems requiring extended travel distances with compact vertical profiles
- Light to moderate load industrial machinery and conveyor systems
- Precision positioning and assembly automation equipment
- Manufacturing and material handling applications with space-constrained heights
- Laboratory and testing equipment requiring smooth, reliable linear motion
As part of our extensive INA carriage portfolio, this component delivers the precision engineering and reliability expected from INA products in a configuration optimized for applications requiring both extended reach and low-profile installation.
