Quick Code: BB-509308

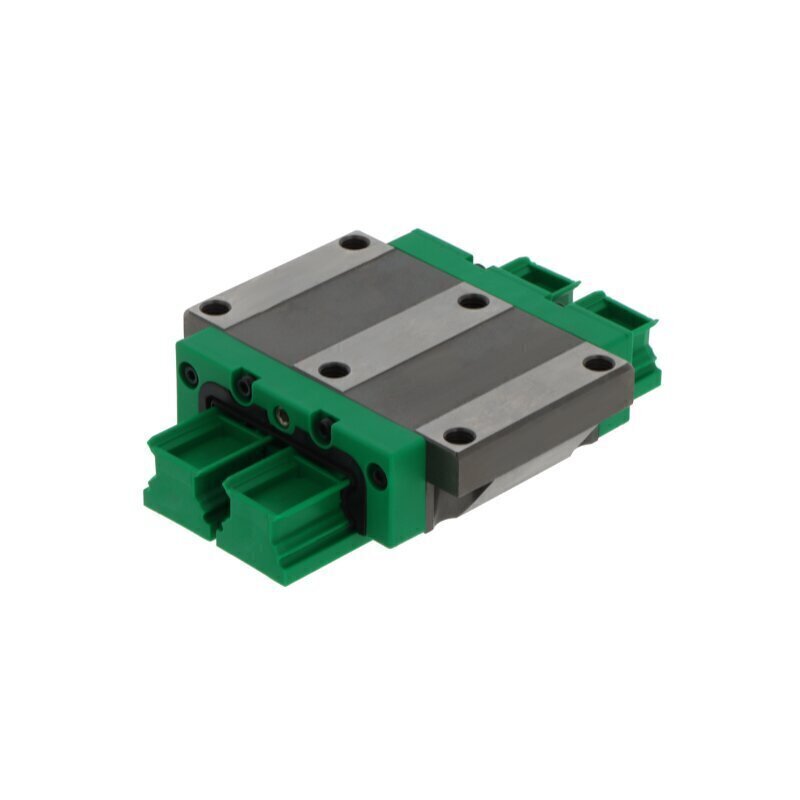

KWVE25-W-V1-G3 INA Carriage
The KWVE25-W-V1-G3 INA Carriage is a precision-engineered linear motion component designed for applications requiring smooth, accurate linear movement with excellent load capacity and reliable performance. This wide-design block carriage from INA's 25 series combines advanced engineering with practical design features to deliver consistent accuracy, durability, and enhanced stability in demanding industrial environments.
Key Specifications:
- Design: Block carriage with wide configuration for increased stability and load distribution
- Series: 25 series
- Rolling Elements: Four-row ball bearing system for superior load capacity
- Preload: Light preload for optimal load distribution and smooth operation
- Material Construction: Steel with plastic components for durability and corrosion resistance
- Tolerance Class: G3 for high-precision linear guidance
- Sealing: End seals and sealing strips for enhanced protection against contamination
- Lubrication: Relubricatable design for extended service life and convenient maintenance intervals
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain configuration
Ideal Applications:
The KWVE25-W-V1-G3 is well-suited for industrial applications where precision linear motion and enhanced load capacity are essential, including:
- Industrial automation systems
- Heavy-duty manufacturing equipment
- Precision positioning machinery
- Packaging and material handling systems
- Machine tool applications
- Conveyor and transfer systems
This carriage delivers the precision, reliability, and stability demanded by modern industrial applications. The wide design configuration provides improved lateral stability and load distribution, making it an excellent choice for installations requiring enhanced performance and consistent accuracy in linear guidance systems.
