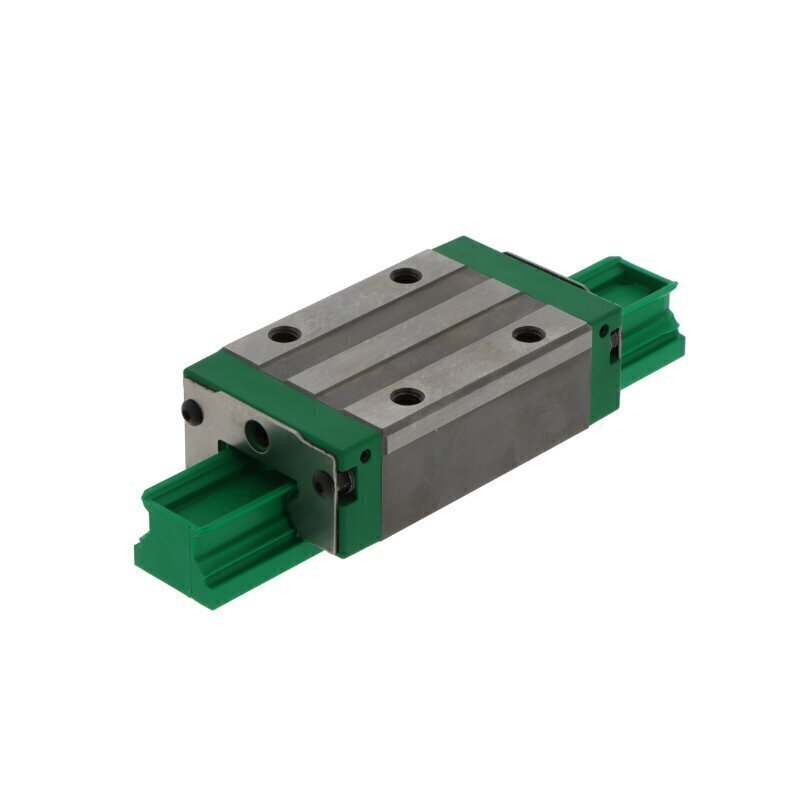

KWVE25-B-SN-V2-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Medium preload
Seal
End Seals and Sealing Strips
Series
25 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Slimline and low design
Reference
KWVE25BSNV2G3
Additional Reference:
10101710
Quick Order Code
BB-509307
Product Description
The KWVE25-B-SN-V2-G3 INA Carriage is a precision linear motion component engineered for applications requiring smooth, accurate linear movement in space-constrained environments. This block carriage combines a slimline and low design profile with reliable performance, making it ideal for industrial automation systems where compact installation and maintained precision are critical requirements.
Key Specifications:
- Design: Block carriage with slimline and low design for compact installation
- Series: 25 series
- Rolling Elements: Ball type with four-row configuration
- Material: Steel with plastic components for durability and reduced weight
- Preload: Medium preload for enhanced load capacity and precision guidance
- Ball Chain: Without ball chain
- Lubrication: Relubricatable for extended service life and maintenance accessibility
- Sealing: End seals and sealing strips for protection against contamination
- Tolerance Class: G3 for reliable precision performance
- Operating Temperature Range: -10 to +80°C
Typical Applications:
This carriage is well-suited for:
- Linear motion systems with space-limited installation requirements
- Compact industrial machinery and automation equipment
- Precision positioning and assembly automation with low-profile designs
- Manufacturing and material handling applications in confined spaces
- Machine tools and testing equipment requiring smooth, reliable linear motion
- Modular automation systems where compact footprint is essential
The combination of the slimline and low design profile, medium preload for enhanced load distribution, and relubricatable maintenance system makes this INA carriage an excellent choice for demanding applications requiring precision performance in compact installations with accessible maintenance.
