Quick Code: BB-508971

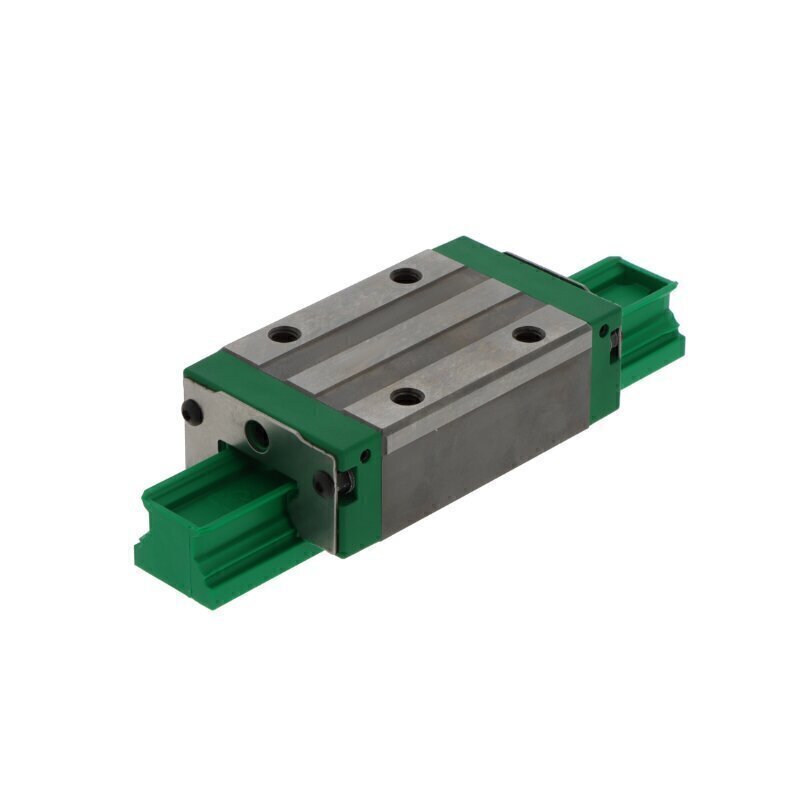

KWVE25-B-SN-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
25 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Slimline and low design
Reference
KWVE25BSNV1G3
Additional Reference:
10099618
Quick Order Code
BB-508971
Product Description
The KWVE25-B-SN-V1-G3 INA Carriage is a precision linear motion component engineered for industrial applications requiring smooth, accurate linear movement in space-constrained environments. This block carriage combines advanced design features with reliable performance characteristics suitable for diverse mounting and load requirements.
Key Specifications:
- Series: 25 series
- Design: Block carriage with slimline and low profile
- Rolling Elements: Ball type, four-row configuration
- Preload: Light preload for balanced load distribution
- Material Construction: Steel with plastic components for durability and weight optimization
- Tolerance Class: G3 for precise dimensional accuracy
- Lubrication: Relubricatable design for extended service life and maintenance flexibility
- Sealing: End seals and sealing strips for protection against contaminants
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain configuration
Applications:
This carriage is ideal for applications where compact installation space is critical, including:
- Automated machinery with height or depth constraints
- Precision assembly systems
- Medical and laboratory equipment
- Food processing automation
- Industrial automation requiring moderate load capacity
The combination of the slimline design, light preload, and relubricatable maintenance system makes this INA carriage an excellent choice for demanding applications requiring both precision and accessibility for routine maintenance.
