Quick Code: BB-509013

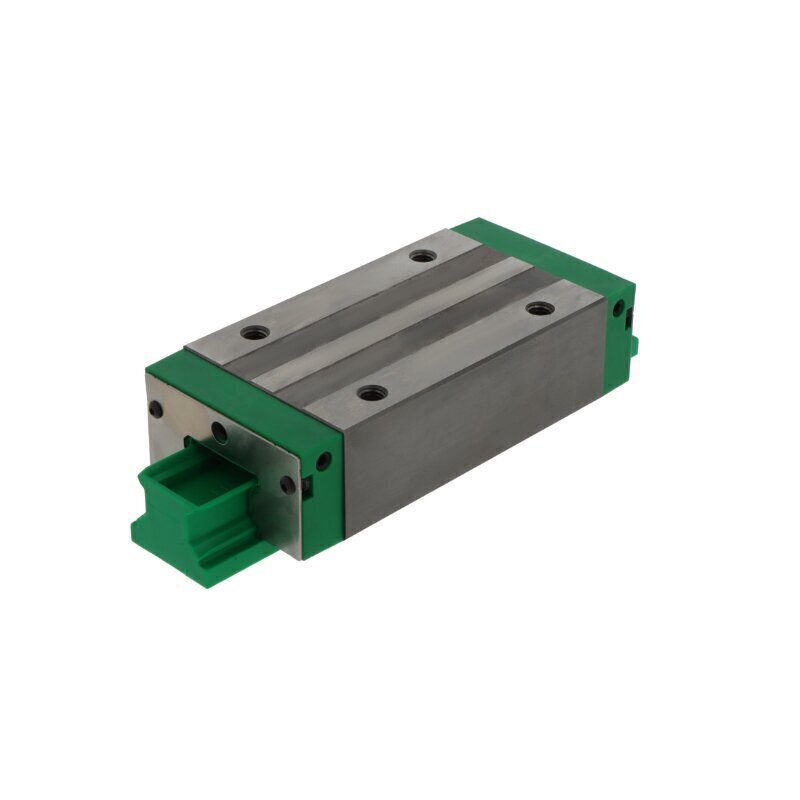

KWVE25-B-SNL-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
25 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Slimline, low and long design
Reference
KWVE25BSNLV1G3
Additional Reference:
10099736
Quick Order Code
BB-509013
Product Description
The KWVE25-B-SNL-V1-G3 INA Carriage is a precision linear motion component engineered for applications requiring smooth, accurate guided movement with space-conscious design. This four-row ball carriage combines compact dimensions with reliable performance, making it ideal for industrial automation systems, machinery assemblies, and precision positioning equipment where footprint is a consideration.
Key Features:
- Design: Block carriage with slimline, low, and long profile for space-efficient installations
- Rolling Elements: Four-row ball configuration delivering smooth linear motion and load distribution
- Preload: Light preload for balanced performance between smooth operation and minimal friction
- Material Construction: Steel and plastic composition providing durability with reduced weight
- Lubrication: Relubricatable design allowing for extended service life through periodic maintenance
- Sealing: End seals and sealing strips protect against contamination and extend carriage longevity
- Tolerance Class: G3 precision grade ensuring consistent performance in demanding applications
- Operating Temperature: Reliable performance across -10 to +80°C temperature range
- Ball Chain: Without ball chain configuration for streamlined design
Ideal Applications: This carriage is particularly suited for industrial machinery, textile equipment, printing systems, and automation solutions where compact linear guidance is essential without compromising load capacity or precision.
