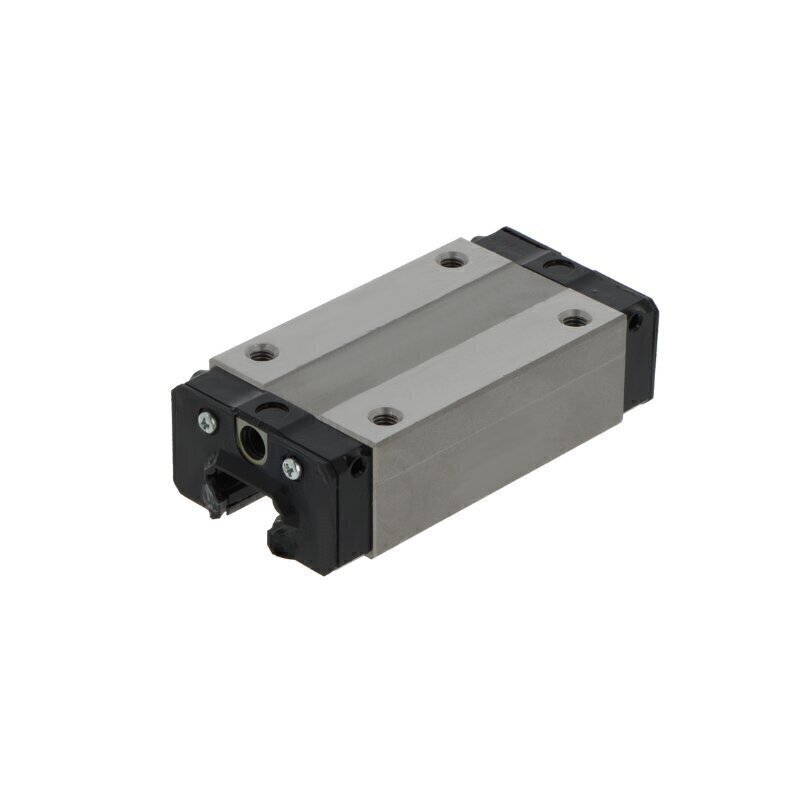

KWVE25-B-SL-RROC-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel with Corrotect Rust Protection, Plastic
Seal
End Seals and Sealing Strips
Series
25 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Small and long design
Reference
KWVE25BSLRROCV1G3
Additional Reference:
10188672
Quick Order Code
BB-530897
Product Description
The KWVE25-B-SL-RROC-V1-G3 INA Carriage is a precision-engineered linear motion component designed for industrial applications requiring compact, reliable linear guidance with excellent load distribution. This block carriage features a small and long design configuration with four-row ball elements, making it ideal for space-constrained environments where smooth, accurate linear movement is essential.
Key Specifications:
- Design: Block carriage with small and long design configuration for versatile mounting in compact spaces
- Series: 25 series optimized for applications requiring balanced performance in confined installation areas
- Rolling Elements: Four-row ball bearing configuration providing smooth, precise linear motion with excellent load distribution
- Material Construction: Steel with Corrotect rust protection and plastic components for durability and corrosion resistance
- Tolerance Class: G3 for reliable dimensional accuracy and consistent operational performance
- Version: Small and long design for extended rail guidance and improved stability in compact applications
- Sealing: End seals and sealing strips providing comprehensive protection against contamination and debris
- Lubrication: Relubricatable design allowing for scheduled maintenance and extended service life during continuous operation
- Operating Temperature Range: -10 to +80°C for reliable performance across varied industrial environments
- Ball Chain: Without ball chain for streamlined, compact integration
Ideal Applications:
The KWVE25-B-SL-RROC-V1-G3 is particularly well-suited for:
- Compact industrial automation systems where space is limited
- Precision assembly and positioning equipment
- Manufacturing machinery requiring smooth linear guidance in confined areas
- Applications demanding reliable corrosion resistance in moderate environmental conditions
- Systems requiring periodic maintenance and extended operational life
- Equipment operating in temperature-controlled industrial environments
The combination of four-row ball elements, compact design, and Corrotect rust protection makes this carriage an excellent choice for production environments where space optimization, reliability, and ease of maintenance are critical factors.
Reference: KWVE25BSLRROCV1G3
