Quick Code: BB-509304

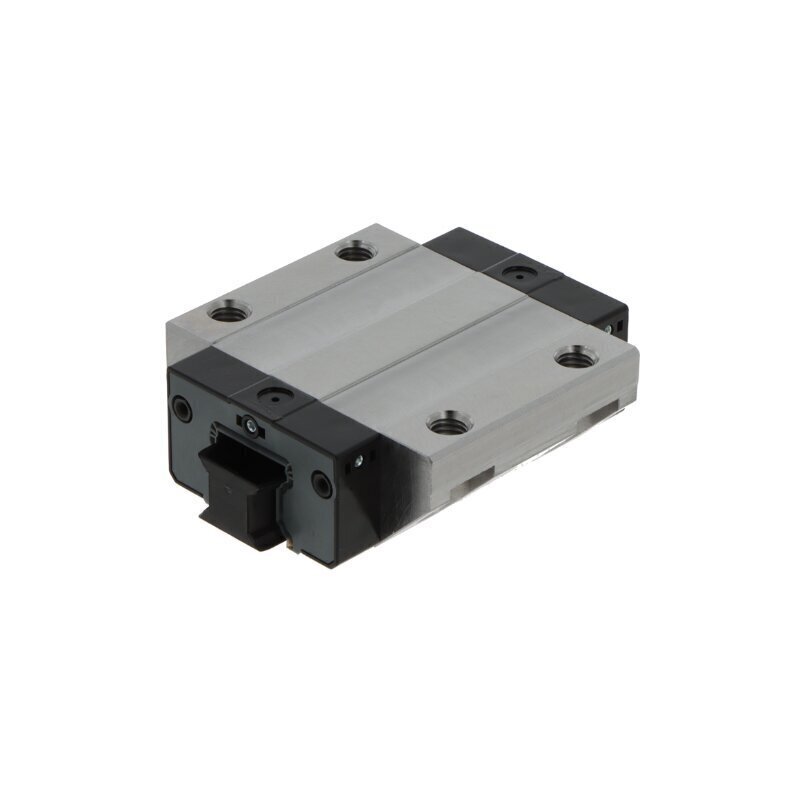

KWVE25-B-N-V2-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Flange carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Medium preload
Seal
End Seals and Sealing Strips
Series
25 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Low design
Reference
KWVE25BNV2G3
Additional Reference:
10101684
Quick Order Code
BB-509304
Product Description
The KWVE25-B-N-V2-G3 is a precision-engineered flange carriage from INA's 25 series, specifically designed for demanding industrial applications requiring smooth, accurate linear motion with reliable performance. This compact block carriage combines robust engineering with practical maintenance features to deliver consistent linear guidance across a wide range of operational scenarios.
Key Specifications:
- Design: Flange carriage configuration for versatile installation options and compact integration
- Rolling Elements: Ball type with four-row configuration for excellent load distribution and smooth motion
- Series: 25 series, offering balanced load capacity and space-efficient design
- Preload: Medium preload setting for optimized performance balancing load capacity and reduced friction
- Material Composition: Steel and plastic components for durability, corrosion resistance, and lightweight handling
- Tolerance Class: G3 for reliable precision in most industrial applications
- Version: Low design providing a compact profile ideal for space-constrained installations
- Lubrication: Relubricatable design allowing for extended service life through regular maintenance intervals
- Sealing: End seals and sealing strips for effective protection against contamination and environmental ingress
- Operating Temperature Range: -10 to +80°C for reliable performance in varied industrial environments
- Ball Chain: Without ball chain for streamlined operation
Ideal Applications:
The KWVE25-B-N-V2-G3 is well-suited for industrial automation, manufacturing equipment, material handling systems, packaging machinery, and precision assembly machines where compact design combined with dependable linear motion and maintainability are essential requirements.
