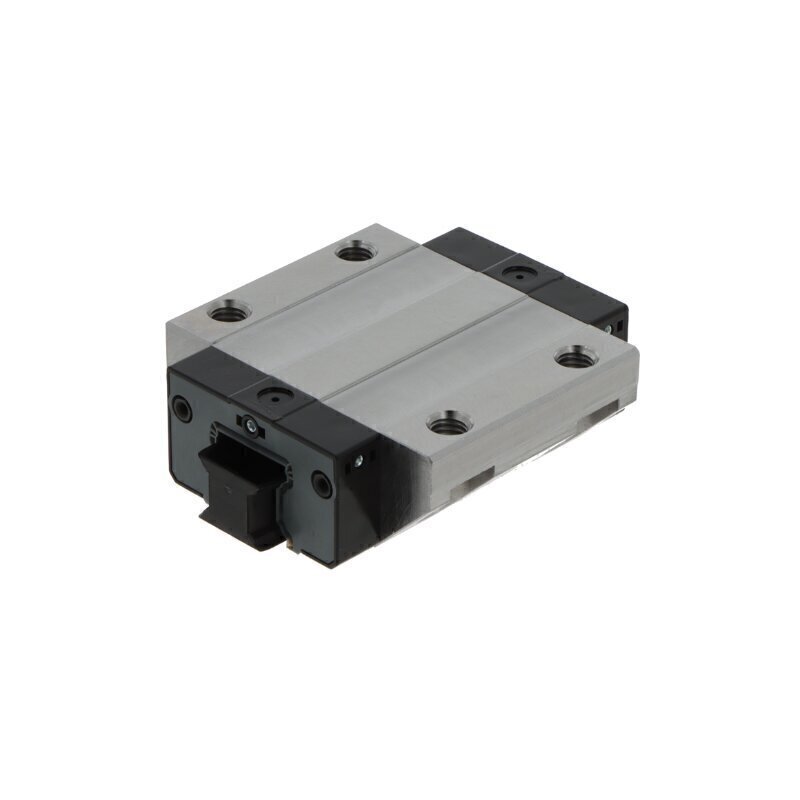

KWVE25-B-N-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Flange carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
25 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Low design
Reference
KWVE25BNV1G3
Additional Reference:
10099732
Quick Order Code
BB-509010
Product Description
The KWVE25-B-N-V1-G3 INA Carriage is a precision linear motion component engineered for reliable performance in demanding industrial applications. This low-profile flange carriage combines advanced design with robust construction to deliver smooth, accurate linear movement in space-constrained environments.
Key Specifications:
- Series: 25 series
- Design Type: Flange carriage with low-profile design
- Rolling Elements: Ball type, four-row configuration
- Preload: Light preload for optimal load distribution
- Tolerance Class: G3 for precise positioning
- Material: Steel with plastic components for durability and wear resistance
- Ball Chain: Without ball chain
Performance Features:
- Lubrication: Relubricatable for extended service life and easy maintenance
- Sealing: End seals and sealing strips provide protection against contamination
- Operating Temperature: -10 to +80°C for versatile environmental compatibility
- Version: Low design suitable for applications with limited vertical space
Applications:
The KWVE25-B-N-V1-G3 is ideal for machinery requiring moderate load capacities with consistent linear motion in compact configurations, including automation equipment, manufacturing systems, industrial positioning mechanisms, and space-constrained applications where reliable performance, low maintenance, and a minimal profile are essential.
Reference: KWVE25BNV1G3 | Brand: INA
