Quick Code: BB-509036

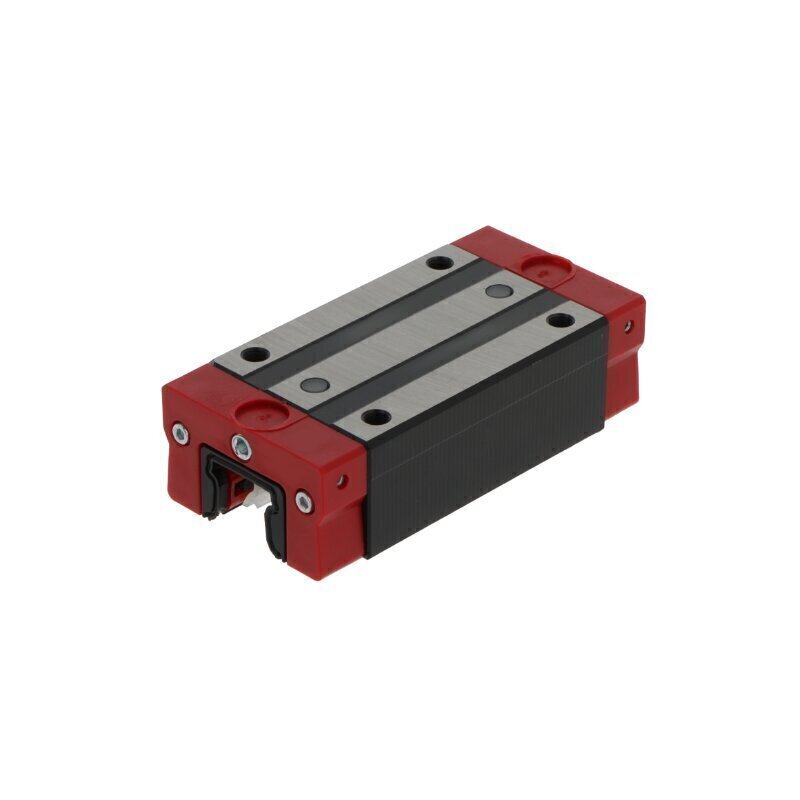

KWVE25-B-HL-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
25 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
High and long design
Reference
KWVE25BHLV1G3
Additional Reference:
10099762
Quick Order Code
BB-509036
Product Description
The KWVE25-B-HL-V1-G3 INA Carriage is a precision-engineered linear motion component from INA's extensive carriage range, specifically designed for demanding industrial applications requiring smooth, accurate linear movement. This block carriage combines robust engineering with reliable performance characteristics.
Key Specifications:
- Series: 25 series
- Design: Block carriage with high and long design configuration
- Rolling Elements: Ball type (four-row configuration)
- Material: Steel with plastic components
- Preload: Light preload for balanced load handling
- Tolerance Class: G3
- Lubrication: Relubricatable for extended service life and maintenance flexibility
- Sealing: End seals and sealing strips for enhanced protection
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
Applications:
The KWVE25-B-HL-V1-G3 is ideal for applications requiring:
- Extended travel distances with the high and long design
- Moderate to higher load capacities within the 25 series range
- Precise linear positioning in industrial automation
- Systems requiring relubricatable maintenance for operational longevity
- Reliable performance across standard industrial temperature environments
As a precision linear carriage solution, this component is engineered to deliver consistent performance in demanding industrial environments where accuracy, durability, and smooth motion are essential.
