Quick Code: BB-509151

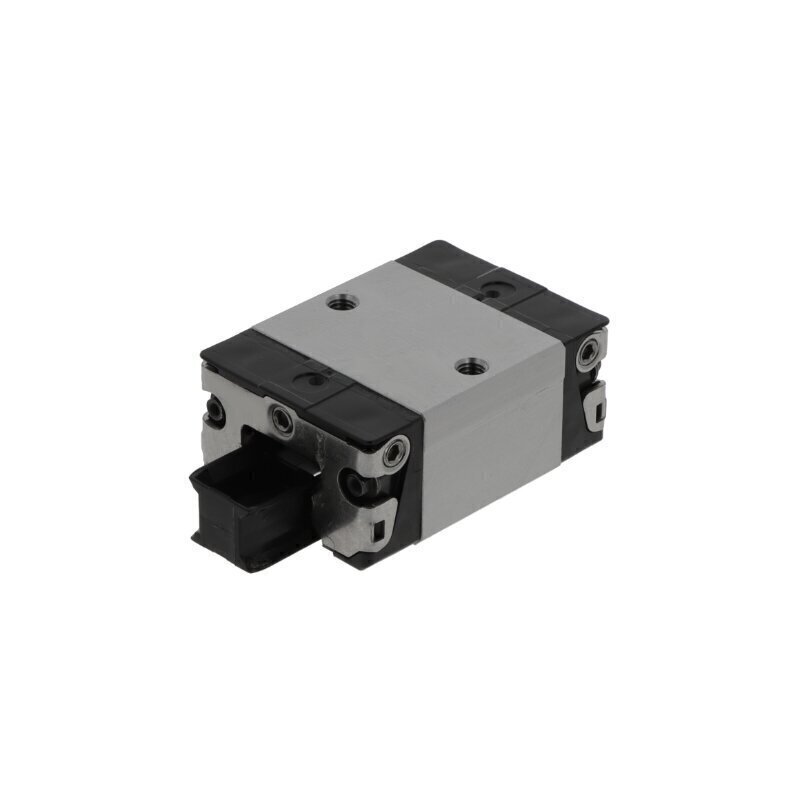

KWVE25-B-ESC-V0-G4 INA Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
THK Carriages
NSK Carriages
Ewellix Carriages
High Visibility Jackets
T10 Timing Belts (10mm Pitch)
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Without preload
Seal
End Seals and Sealing Strips
Series
25 series
Temperature range
-10 to +80 °C
Tolerance class
G4
Type of rolling elements
Balls
Version
Upgraded short, slim type
Reference
KWVE25BESCV0G4
Additional Reference:
10099998
Quick Order Code
BB-509151
Product Description
The KWVE25-B-ESC-V0-G4 INA Carriage is a precision linear motion component engineered for industrial applications requiring reliable, smooth, and accurate linear movement in space-constrained environments. This upgraded short, slim-type block carriage delivers robust performance with a compact design, making it ideal for installations where minimizing footprint is critical.
Key Specifications:
- Design: Block carriage with upgraded short, slim-type configuration for maximum compactness
- Series: 25 series with G4 tolerance class
- Rolling Elements: Ball-type with four-row configuration
- Preload: Without preload for reduced friction and cost-effective operation
- Material: Steel with plastic components for durability and corrosion resistance
- Lubrication: Relubricatable design for extended service life and maintenance flexibility
- Sealing: End seals and sealing strips for protection against contamination
- Operating Temperature: -10 to +80°C
- Ball Chain: Without ball chain
Ideal Applications:
This carriage is particularly well-suited for:
- Compact linear motion systems with severe space limitations
- Lightweight to medium-load industrial automation equipment
- Precision machinery requiring smooth, predictable movement
- Applications in standard temperature environments
- Systems requiring relubricatable maintenance capabilities
- Equipment where slim profile and minimal weight are essential design requirements
The KWVE25-B-ESC-V0-G4 offers an excellent balance of precision engineering, reliability, and ultra-compact form factor, making it an ideal choice for demanding industrial applications where space optimization is paramount.
