KWVE15-B-S-V1-G4 INA Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
THK Carriages
NSK Carriages
Ewellix Carriages
FAG Ball Bearings
Lightning Bolts
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
15 series
Temperature range
-10 to +80 °C
Tolerance class
G4
Type of rolling elements
Balls
Version
Small design
Reference
KWVE15BSV1G4
Additional Reference:
10101196
Quick Order Code
BB-509223
Product Description

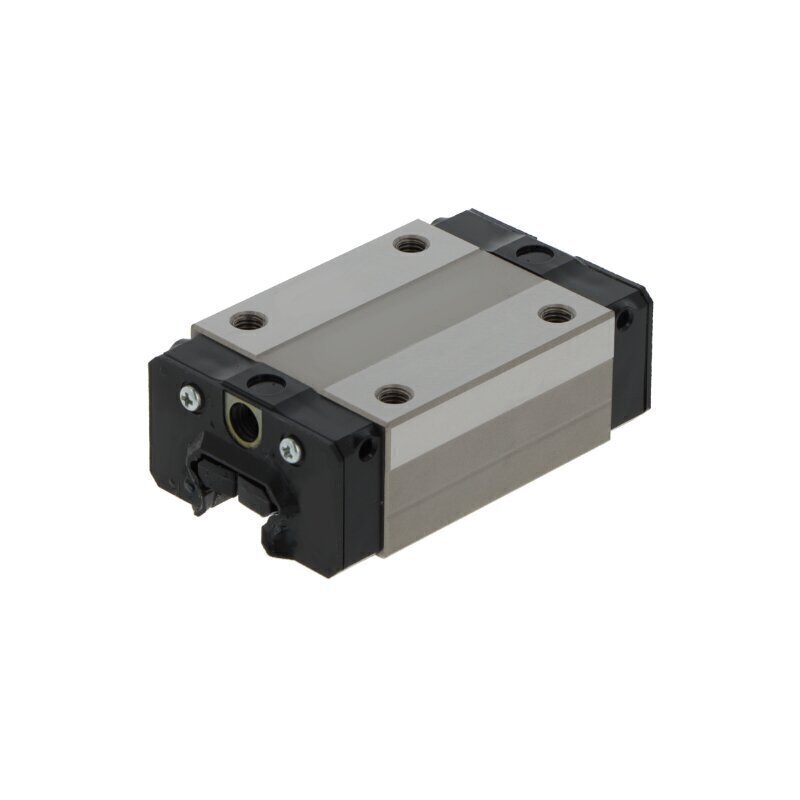

The KWVE15-B-S-V1-G4 INA Carriage is a precision linear motion component engineered for applications demanding compact, space-efficient design with excellent positioning accuracy. This small-design block carriage combines precision engineering with a minimalist footprint, making it ideal for equipment where installation space is severely limited while maintaining reliable linear guidance.
Key Specifications:
- Series: 15 series
- Design: Block carriage (small design)
- Rolling Elements: Ball type, four-row configuration
- Preload: Light preload for smooth, accurate motion
- Material: Steel with plastic components for optimized performance
- Tolerance Class: G4 - high precision grade for tight tolerance requirements
- Sealing: End seals and sealing strips for enhanced protection against contaminants
- Lubrication: Relubricatable design with lubrication nipple for extended service life and convenient maintenance
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
Ideal Applications:
The KWVE15-B-S-V1-G4 is perfectly suited for:
- Miniaturized automation and precision machinery
- Medical devices and laboratory instrumentation requiring tight positional accuracy
- Compact optical and imaging systems with strict positioning requirements
- Precision printing and micro-assembly equipment
- Analytical instruments and measurement systems demanding high repeatability
- Space-constrained robotic applications requiring accurate linear motion
This carriage delivers the precision and reliability expected from INA linear motion solutions while offering an ultra-compact form factor required by modern miniaturized system designs.
Reference: KWVE15BSV1G4 | Brand: INA
