Quick Code: BB-509136

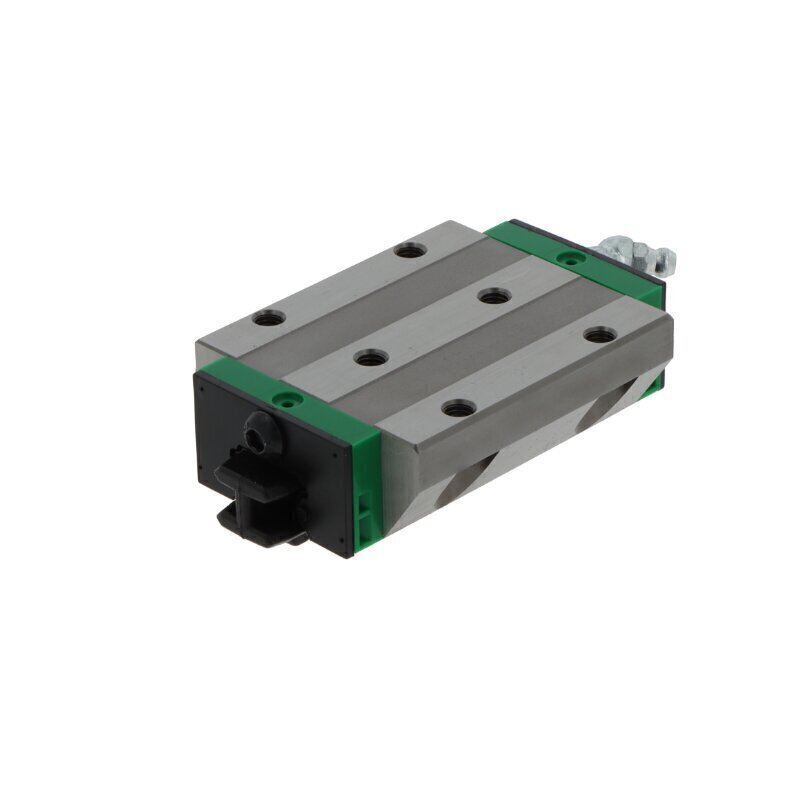

KWSE20-L-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Six Row
Brand
INA
Design
Flange carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
20 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Long design
Reference
KWSE20LV1G3
Additional Reference:
10099906
Quick Order Code
BB-509136
Product Description
The KWSE20-L-V1-G3 INA Carriage is a precision linear motion component engineered for demanding industrial applications requiring smooth, accurate linear movement. This six-row ball carriage combines robust construction with reliable performance for systems where consistent motion control is essential.
Key Specifications
- Design: Flange carriage with long design configuration
- Series: 20 series
- Rolling Elements: Ball type, six-row configuration
- Preload: Light preload for optimized load distribution
- Material: Steel with plastic components for durability and low-friction operation
- Tolerance Class: G3 for precise positioning requirements
- Sealing: End seals and sealing strips for protection against contaminants
- Lubrication: Relubricatable for extended service life and maintenance flexibility
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
Ideal Applications
The KWSE20-L-V1-G3 carriage is suited for:
- Automation and assembly line systems
- Material handling equipment
- Machine tool applications
- Industrial positioning systems where moderate load capacity and long-form configurations are required
- Applications demanding reliable performance in controlled temperature environments
As a relubricatable unit with comprehensive sealing protection, this carriage offers excellent value for applications requiring periodic maintenance with extended operational reliability.
