Quick Code: BB-509135

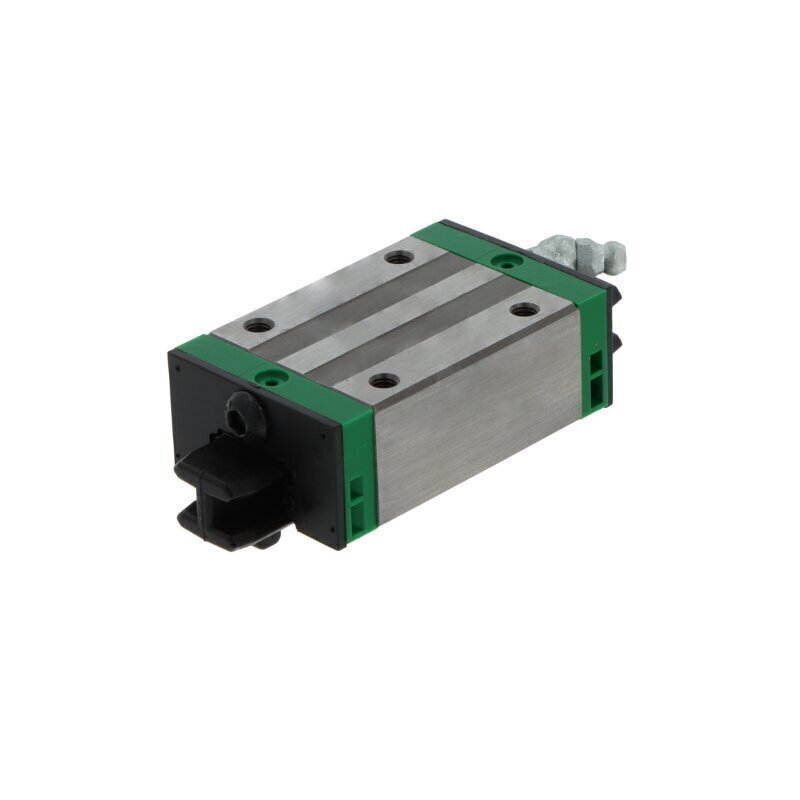

KWSE20-H-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Six Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
20 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
High design
Reference
KWSE20HV1G3
Additional Reference:
10099903
Quick Order Code
BB-509135
Product Description
The KWSE20-H-V1-G3 INA Carriage is a precision linear motion component engineered for applications requiring reliable, smooth linear movement with superior load capacity. This block carriage combines advanced engineering with robust construction to deliver exceptional performance in industrial automation and machinery systems.
Key Features:
- Design: Block carriage configuration for versatile mounting options
- Rolling Elements: High-precision ball bearings in six-row configuration for optimal load distribution and smooth operation
- Preload: Light preload setting for balanced performance between smooth motion and load handling
- Series: 20 series - ideal mid-range size for diverse industrial applications
- Tolerance Class: G3 - provides excellent precision for demanding applications
- Materials: Steel and plastic components for durability and lightweight characteristics
- Sealing: End seals and sealing strips protect against contaminants while maintaining smooth operation
- Lubrication: Relubricatable design allows for extended service life through periodic maintenance
- Operating Temperature Range: -10 to +80°C for reliable performance in varied industrial environments
- Ball Chain: Without ball chain configuration
Applications:
The KWSE20-H-V1-G3 is ideal for automation equipment, packaging machinery, material handling systems, and precision manufacturing applications where consistent linear motion accuracy and reliability are essential.
