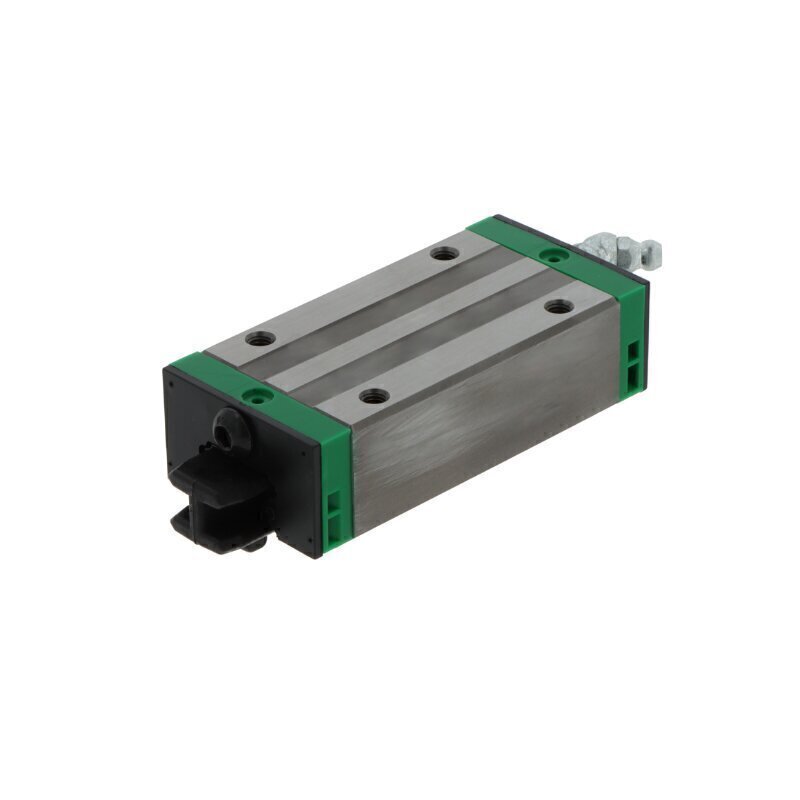

KWSE20-HL-V2-G3 INA Carriage
The KWSE20-HL-V2-G3 INA Carriage is a precision block carriage engineered for demanding industrial applications requiring smooth, accurate linear motion with enhanced load capacity. Part of INA's proven 20 series, this carriage combines robust construction with advanced bearing technology to deliver reliable performance in high-demand operational environments.
Key Specifications:
- Design: Block carriage configuration
- Rolling Elements: Six-row ball bearing system for superior load distribution and smooth operation
- Material Composition: Steel body with plastic components for durability and optimal performance
- Preload: Medium preload for balanced load distribution, reduced friction, and enhanced precision
- Lubrication: Relubricatable design for extended service life and convenient maintenance accessibility
- Sealing: End seals and sealing strips for reliable protection against contamination
- Tolerance Class: G3 for precision positioning and consistent accuracy
- Version: High and long design for increased travel range and versatile installation configurations
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
Applications:
The KWSE20-HL-V2-G3 is ideal for industrial automation systems, heavy-duty manufacturing equipment, and precision machinery where extended linear motion guidance and substantial load capacity are essential. Its six-row ball bearing configuration and medium preload make it particularly suitable for applications involving moderate to high load demands, including packaging machinery, transfer systems, and precision assembly equipment. The high and long design offers flexibility for applications requiring extended travel distances and varied mounting requirements.
Reference: KWSE20HLV2G3 | Brand: INA
