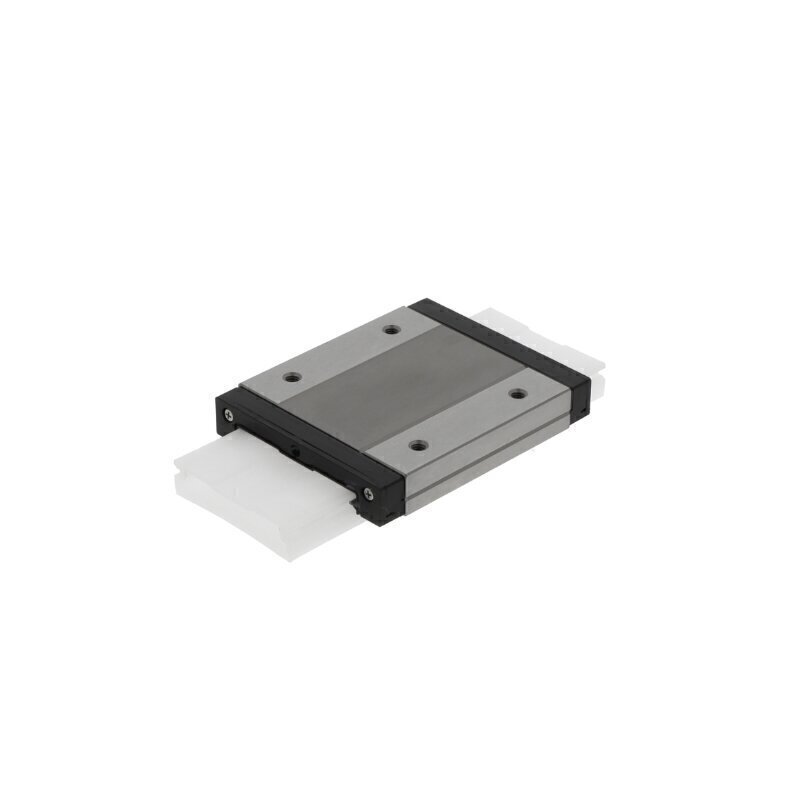

KWEM09-WL-V0-G2A INA Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
THK Carriages
NSK Carriages
Schneeberger Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Stainless Steel, Plastic
Preload
Without preload
Seal
End Seals and Sealing Strips
Series
9 series
Temperature range
-10 to +80 °C
Tolerance class
G2A
Type of rolling elements
Balls
Version
Wide and long design
Reference
KWEM09WLV0G2A
Additional Reference:
10188107
Quick Order Code
BB-530748
Product Description
The KWEM09-WL-V0-G2A INA Carriage is a precision linear motion component engineered for applications requiring smooth, accurate linear movement in a wide and long design configuration. This block carriage combines compact versatility with extended load-bearing capabilities, making it ideal for industrial automation systems where both horizontal span and reliable performance are essential.
Key Specifications:
- Design: Block carriage with wide and long design for extended reach and load distribution
- Series: 9 series
- Rolling Elements: Ball type with double-row configuration for balanced load support
- Material: Stainless steel with plastic components for enhanced corrosion resistance and durability
- Preload: Without preload for versatile application flexibility
- Ball Chain: Without ball chain
- Lubrication: Relubricatable for extended service life and convenient maintenance
- Sealing: End seals and sealing strips for reliable protection against contamination
- Tolerance Class: G2A for precision performance in demanding applications
- Operating Temperature Range: -10 to +80°C
Typical Applications:
This carriage is well-suited for:
- Linear motion systems with extended horizontal installations requiring compact design
- Light to moderate load industrial machinery and automation equipment
- Precision positioning and assembly automation with consistent accuracy requirements
- Manufacturing and material handling applications in corrosive or hygiene-sensitive environments
- High-precision industrial systems where G2A tolerance class ensures reliable guidance
- Equipment requiring relubricatable maintenance for extended operational life
- Applications benefiting from stainless steel construction for improved durability and contamination resistance
As part of our extensive INA carriage portfolio, this component delivers the precision engineering and reliability expected from INA products in a wide and long block carriage configuration optimized for versatile industrial applications.
