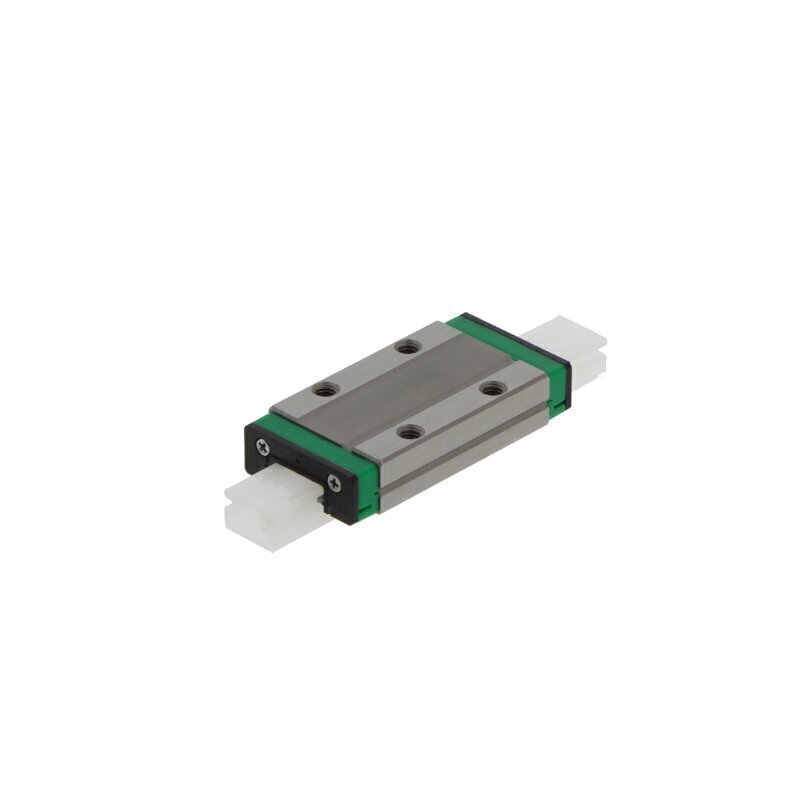

KWEM09-L-V1-G2A INA Carriage
The KWEM09-L-V1-G2A INA Carriage is a precision linear motion component engineered for applications requiring compact, reliable guided movement with excellent accuracy. This block carriage combines stainless steel construction with advanced design features, making it ideal for demanding industrial environments where corrosion resistance and precise motion control are essential.
Key Specifications:
- Design: Block carriage with long design for optimized mounting flexibility and load distribution
- Series: 9 series - compact carriage system for space-constrained applications
- Rolling Elements: Ball type in double-row configuration for smooth, consistent linear motion
- Preload: Light preload for reduced friction while maintaining excellent positional accuracy
- Material: Stainless steel with plastic components for superior corrosion resistance and durability in harsh environments
- Tolerance Class: G2A - providing high-precision performance for demanding applications requiring accuracy and repeatability
- Lubrication: Relubricatable design allowing convenient maintenance and extended service life without carriage replacement
- Sealing: End seals and sealing strips protect against contamination and environmental ingress
- Operating Temperature: -10 to +80°C, suitable for diverse industrial and specialized environments
- Ball Chain: Without ball chain for streamlined design
Ideal Applications:
This carriage is well-suited for applications where corrosion resistance and precision are critical, including:
- Food and beverage processing equipment
- Pharmaceutical manufacturing systems
- Chemical processing automation
- Medical device assembly and positioning
- Precision automation requiring compact solutions
- Laboratory instrumentation and analytical equipment
- Outdoor or humid industrial environments
- Applications requiring light to moderate loading with high positional accuracy
The stainless steel construction combined with the relubricatable design makes this carriage particularly valuable in installations where ease of maintenance and resistance to corrosive elements are important for reducing downtime and ensuring long-term reliability.
