Quick Code: BB-535217

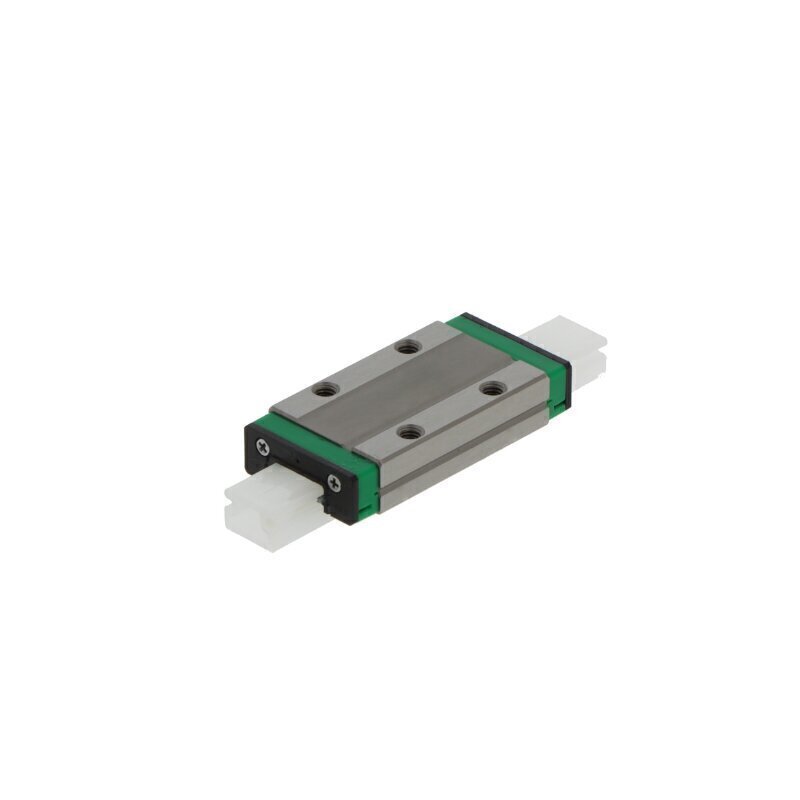

KWEM09-L-LZM-V0-G2B INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
With lubrication system
Material
Stainless Steel, Plastic
Preload
Without preload
Seal
End Seals and Sealing Strips
Series
9 series
Temperature range
-10 to +80 °C
Tolerance class
G2
Type of rolling elements
Balls
Version
Long design
Reference
KWEM09LLZMV0G2B
Additional Reference:
10245116
Quick Order Code
BB-535217
Product Description
The KWEM09-L-LZM-V0-G2B INA Carriage is a precision-engineered linear motion component from INA's compact 9 series, specifically designed for applications requiring smooth, accurate linear movement with excellent corrosion resistance and reliable performance in demanding industrial environments.
Key Specifications:
- Design: Block carriage with long design profile for extended travel and stability
- Series: 9 series for compact, space-constrained applications
- Rolling Elements: Ball type in double-row configuration for optimized performance
- Preload: Without preload for smooth, low-friction operation
- Material Construction: Stainless steel with plastic components for superior corrosion resistance and durability in harsh environments
- Tolerance Class: G2 for high-precision industrial applications
- Sealing: End seals and sealing strips for reliable protection against contamination
- Lubrication: Integrated lubrication system for extended service life and simplified maintenance
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
Applications:
The KWEM09-L-LZM-V0-G2B is ideal for:
- Compact automation equipment and precision machinery in corrosive environments
- Food processing and pharmaceutical applications requiring stainless steel components
- Chemical and marine industry systems demanding enhanced corrosion resistance
- Laboratory and medical instrumentation requiring precise linear motion
- Space-constrained positioning systems with extended travel requirements
- Applications operating in moderate temperature environments with exposure to moisture or corrosive agents
With its stainless steel construction, integrated lubrication system, and sealed design, this compact carriage delivers exceptional reliability and minimal maintenance requirements across demanding operational conditions, particularly where corrosion resistance is critical to system longevity.
