Quick Code: BB-141536
GNE90KRRB 90mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Qty:
Product Specification
Alternative Part Number
GNE90-XL-KRR-B; GNE90XLKRRB; GNE90KRRBS
Inner Race Width (B)
101mm
Inside Dia (d)
90mm
Outer Race Width (C)
45mm
Outer Ring Profile
Spherical
Outside Dia (D)
190mm
Reference
GNE90-KRR-B
Brand
INA
Quick Order Code
BB-141536
Product Description
GNE90KRRB 90mm INA Bearing Insert

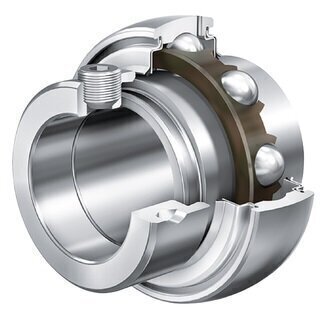

INA bearing insert with spherical outer ring, location by eccentric locking collar and R seals on both sides.
Features:
Sizes (see below diagram):
d: 90mm
D: 190mm
B: 101mm
B1: 77.5mm
C: 45mm
C2: 52.6mm
Ca: 14.3mm
D1: 161.3mm
d1: 122.2mm
d3 max: 132mm
S: 35.5mm
W: 6mm
Mass: 8.07kg
Basic dynamic load rating, radial: 151000N
Basic static load rating, radial: 107000N
Fatigue limit load, radial: 4600N
