Quick Code: BB-141535

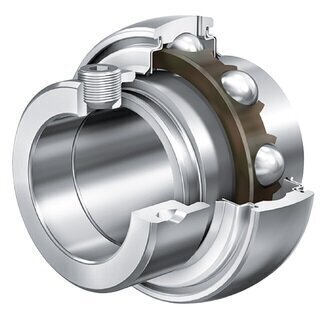

GNE80KRRB 80mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Qty:
Product Specification
Alternative Part Number
GNE80-XL-KRR-B; GNE80XLKRRB; GNE80KRRBS
Inner Race Width (B)
93.6mm
Inside Dia (d)
80mm
Outer Race Width (C)
41mm
Outer Ring Profile
Spherical
Outside Dia (D)
170mm
Reference
GNE80-KRR-B
Brand
INA
Quick Order Code
BB-141535
Product Description
GNE80KRRB 80mm INA Bearing Insert
INA bearing insert with spherical outer ring, location by eccentric locking collar and R seals on both sides.
Features:
Sizes (see below diagram):
d: 80mm
D: 170mm
B: 93.6mm
B1: 73mm
C: 41mm
C2: 51mm
Ca: 13.2mm
D1: 142.8mm
d1: 109mm
d3 max: 118mm
S: 34mm
W: 6mm
Mass: 7.1kg
Basic dynamic load rating, radial: 131000N
Basic static load rating, radial: 87000N
Fatigue limit load, radial: 3950N
