Quick Code: BB-141532
GNE70KRRB 70mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Qty:
Product Specification
Alternative Part Number
GNE70-XL-KRR-B; GNE70XLKRRB
Inner Race Width (B)
75.5mm
Inside Dia (d)
70mm
Outer Race Width (C)
37mm
Outer Ring Profile
Spherical
Outside Dia (D)
150mm
Reference
GNE70-KRR-B
Brand
INA
Quick Order Code
BB-141532
Product Description

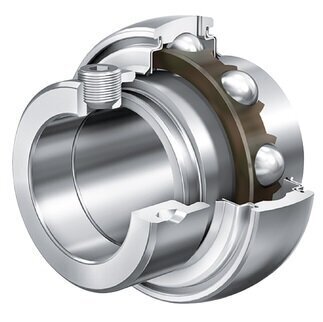

GNE70KRRB 70mm INA Bearing Insert
INA bearing insert with spherical outer ring, location by eccentric locking collar and R seals on both sides.
Features:
Sizes (see below diagram):
d: 70mm
D: 150mm
B: 75.5mm
B1: 58mm
C: 37mm
C2: 41mm
Ca: 12mm
D1: 127mm
d1: 92.2mm
d3 max: 102mm
S: 26mm
W: 6mm
Mass: 3.81kg
Basic dynamic load rating, radial: 111000N
Basic static load rating, radial: 68000N
Fatigue limit load, radial: 3300N
